Lifting your vintage square-body transforms its off-road capability, allowing you to clear massive obstacles and run aggressive mud-terrain tires. However, the moment you modify that suspension, the factory steering geometry is completely compromised. If you are tired of white-knuckling the steering wheel on the highway or fighting violent feedback on the trail, installing a premium K5 Blazer High Steer System is the definitive solution. By upgrading your vulnerable front end to a heavy-duty architecture, you regain the predictable handling and unyielding strength required for hardcore American off-roading.
The Flaws of Lifted Factory Steering Systems
The original push-pull steering architecture on classic GM solid-axle trucks was engineered exclusively for stock ride heights. When you bolt on a suspension lift, the distance between your steering box and the axle drastically increases, dragging your drag link into a severe downward slope.
Overcoming Dangerous Leverage
This steep operating angle creates a terrifying leverage effect. Every time your suspension cycles over a rut or a rock, the movement physically yanks the steering linkage, causing the steering wheel to violently jerk out of your hands. To safely and permanently Eliminate Bump Steer Lifted Chevy owners face, you must flatten this geometry. Upgrading to a specialized hd crossover steering kit solves the problem by routing the linkage horizontally across the front axle, ensuring that your vehicle tracks perfectly straight regardless of suspension articulation.
Building the Ultimate Front End Arsenal

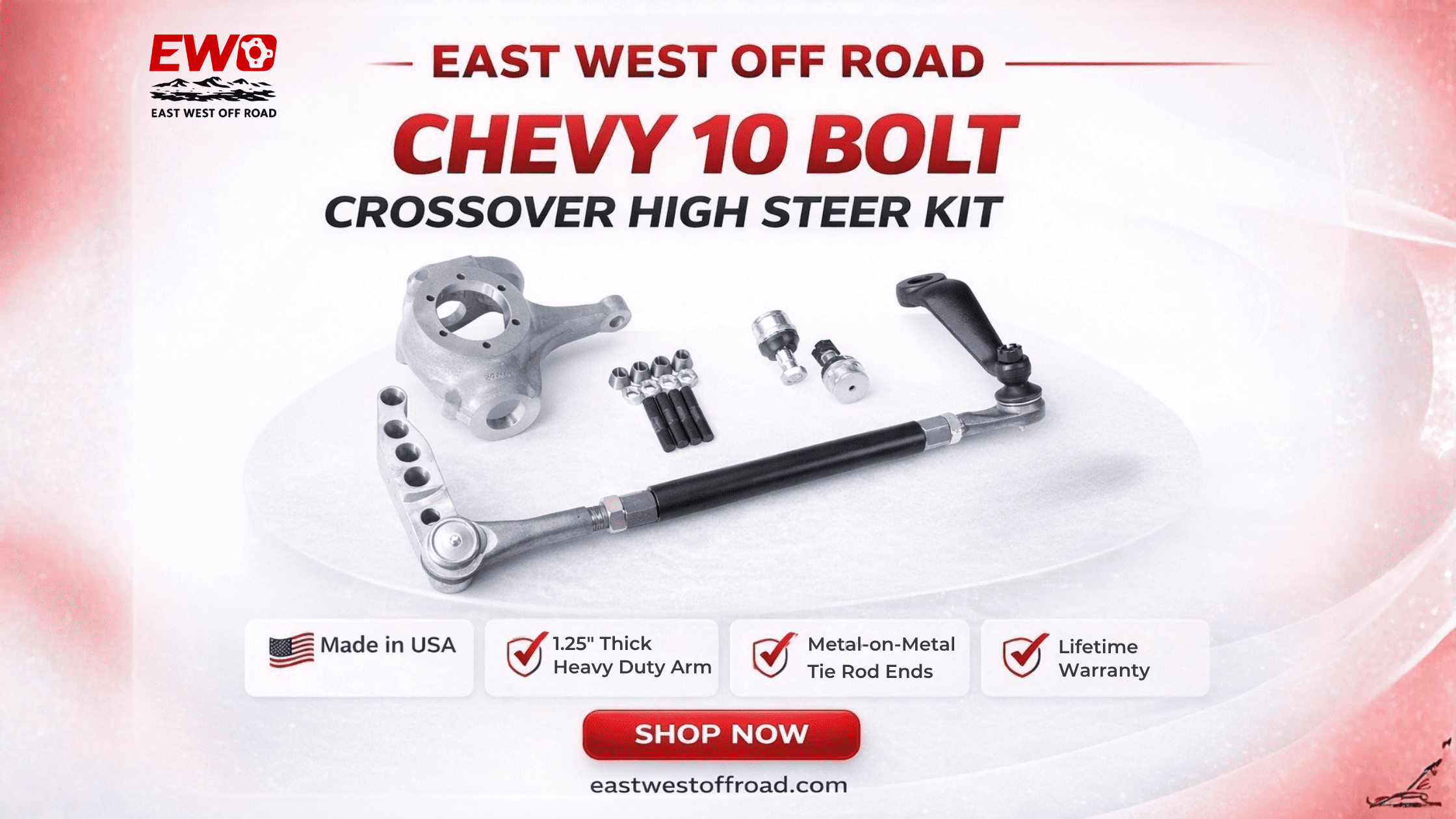

When pushing your rig to the absolute limit, relying on weak, factory-cast junkyard parts is a recipe for disaster. The EWO complete crossover high steer kit provides a fully integrated, premium American-made solution. This East West Offroad steering kit reinforces every vulnerable point in your system to deliver an unbreakable Dana 44 crossover steering setup.
A Rock-Solid Flat Top Knuckle Conversion Kit
A bulletproof front end requires an unyielding foundation. This system features a premium Dana 44 High Steer Kit with Knuckle that includes a USA-made Dana 44 high steer knuckle, precisely machined with a "Bottom Up" taper (a slit tapered insert is also included should you need to change the orientation to "Bottom Down").
Bolted firmly to this rugged casting are massive 1.25 inch billet high steer arms. Machined in-house from domestic billet blocks, these 4-hole style passenger-side arms are virtually indestructible and backed by a lifetime warranty. To guarantee flawless pivoting under extreme articulation, the package also incorporates a heavy-duty Dana 44 upper lower ball joint kit featuring a durable metal-on-metal design.
Bulletproof Linkage: GM 1 Ton Tie Rod Upgrade
Connecting your steering gear to the new high steer knuckle requires a linkage that absolutely refuses to flex or buckle. This package functions as a complete Heavy Duty Drag Link Kit Chevy upgrade.
DOM tubing drag link kit & Superior Ends
You receive a massive 43-inch DOM tubing drag link kit constructed from ultra-thick 1.50” x .250” wall tubing. This provides the premium raw material needed to fabricate a custom link tailored perfectly to your exact lift height.
Capping off that robust tubing are incredibly durable ES2026R ES2027L drag link ends. These are high-performance metal to metal tie rod ends engineered with advanced spring technology that performs way beyond expectations, drastically outlasting standard plastic-lined joints. To secure your Chevy 10 bolt crossover steering kit, you receive all essential hardware, including 7/8 – 18 left and right tube adapters (weld bungs), jam nuts, and high-strength Dana 9/16” studs with conical washers.
Mandatory Chassis Side Modifications
To unlock true Heavy duty crossover steering Dana 44 capabilities, a major modification must be made to your chassis-side steering gear before you hit the dirt.
Factory 4WD steering boxes utilize a front-to-back sweeping motion that is completely incompatible with a side-to-side crossover architecture. To execute a proper Chevy 10 bolt steering conversion, you must perform a 2wd steering box crossover swap. The 2WD gear box allows the sector shaft to swing laterally. Once the 2WD gear is securely bolted to the frame, the included 3 inch drop forged pitman arm 32 spline easily attaches. This forged arm is fully indexable, ensuring perfect alignment to complete your Dana 44 to 10 Bolt Steering Swap. Whether you need a comprehensive Chevy 10 bolt steering upgrade or a reliable Offroad crossover steering Dana 44 setup, replacing the chassis-side gear is mandatory.
Frequently Asked Questions (FAQs)
Will this complete kit work for my specific axle?
Yes! The geometry, tapers, and bolt patterns are universally engineered to be fully compatible with both applications, making it an incredibly versatile Chevy 10 Bolt Crossover High Steer Kit for your classic GM build.
Does this kit deliver true off-road performance?
Absolutely. By utilizing the 1.25" thick billet arms and DOM tubing, this upgrade provides the massive strength and geometry correction needed to survive hardcore rock crawling and deep mud bogging.
Do I need to weld the drag link?
Yes. Because every custom truck features slightly different suspension geometry, leaf spring arch, and lift heights, the kit includes a blank 43-inch piece of heavy-wall DOM tubing. You must measure the exact required length for your rig, cut the tube, and professionally weld the included threaded tube adapters (weld bungs) into the ends for a safe, bind-free fit.
