Trying to Eliminate Bump Steer Lifted Chevy steering issues? If your truck darts, pulls, or feels unpredictable when the suspension moves, the problem may not be your tires or alignment alone. On many lifted Chevy and GMC solid axle builds, bump steer comes from poor steering geometry.
When a truck is lifted, the drag link angle changes. That can cause the steering to react as the suspension cycles. On the road, it may feel like the truck is wandering. On the trail, it can make the front end harder to control over rocks, ruts, mud, and uneven terrain.
The EWO Chevy 10 Bolt Complete Crossover High Steer Kit is designed to help correct that problem on Dana 44 and Chevy 10 Bolt front axle applications. It gives builders a stronger steering setup with improved geometry, a USA-made EWO knuckle, billet high steer arm, DOM drag link tubing, metal-on-metal steering technology, and a fully indexable drop pitman arm.
What Is Bump Steer on a Lifted Chevy?
Bump steer happens when the wheels steer themselves as the suspension moves up and down. In a solid axle Chevy truck, this is often caused by steering linkage angles that no longer match the suspension movement after a lift.
You may notice bump steer if your truck:
- Pulls or darts after hitting bumps
- Feels loose or unpredictable on uneven roads
- Requires constant steering correction
- Wanders after a suspension lift
- Feels unstable during trail articulation
- Has a steep drag link angle
- Drives worse after larger tires or axle changes
A lifted Chevy K10, K20, K5 Blazer, Suburban, or GMC Jimmy can develop these issues when factory-style steering parts are pushed beyond their intended geometry.
Why Lifted Chevy Trucks Often Need Crossover Steering
Factory steering can work fine on a stock or mild truck, but a lifted off-road build changes the whole front-end setup. The higher the suspension sits, the more the drag link angle can become a problem.
A crossover high steer conversion helps by moving the steering linkage into a better position. This improves the way the steering system works with the front axle and suspension travel.
For lifted Chevy trucks, this can help with:
- Reducing bump steer
- Improving steering response
- Creating better drag link geometry
- Adding stronger steering components
- Improving front-end control during articulation
- Supporting rock crawling, trail use, mud, and overlanding builds
If you want to eliminate bump steer on a lifted Chevy, the goal is not just to replace worn parts. The real goal is to improve the steering geometry.
About the EWO Chevy 10 Bolt Complete Crossover High Steer Kit
The EWO Chevy 10 Bolt Complete Crossover High Steer Kit is built for Dana 44 and Chevy 10 Bolt front axle applications. It is designed for serious off-road steering performance and custom 4x4 builds that need more strength than factory-style steering can offer.
This kit is a practical option for Chevy and GMC owners who are upgrading steering after a lift, axle swap, or off-road build. It includes key components needed for a heavy-duty crossover high steer conversion, including the knuckle, high steer arm, drag link tubing, ball joints, hardware, weld bungs, jam nuts, and pitman arm.
Instead of sourcing multiple steering parts separately, this kit gives builders a more complete package for a stronger front-end steering setup.
Key Features That Help Improve Steering Geometry
The EWO kit is built around strength, steering angle, and off-road durability. Each major component plays a role in helping the steering system perform better on lifted Chevy and Dana 44 / Chevy 10 Bolt applications.
USA-Made EWO Steering Knuckle
The included EWO steering knuckle is made in the USA and designed for Dana 44 / Chevy 10 Bolt applications. A proper knuckle is important because it supports the high steer arm and helps the steering conversion come together correctly.
1.25-Inch Thick Billet High Steer Arm
The kit includes a passenger-side 1.25-inch thick billet high steer arm. It is precision-machined in-house from domestic billet blocks and built for demanding off-road steering loads.
EWO also offers a lifetime warranty on steering arms, giving builders more confidence in a hard-use steering setup.
Heavy-Wall DOM Drag Link Tubing
The included drag link tubing measures 43 inches long with 1.50-inch outside diameter and .250-inch wall thickness. DOM tubing is a strong choice for off-road steering because it can handle trail abuse, larger tires, and heavy suspension movement.
Fully Indexable 3-Inch Drop Forged Pitman Arm
The fully indexable 3-inch drop forged pitman arm comes with 32 splines and helps support steering setup flexibility. This is useful when dialing in steering alignment on lifted or modified vehicles.
Tapered Insert for Steering Orientation
The kit includes a slit tapered insert that allows users to change steering orientation from bottom-up to bottom-down if needed. This added flexibility is helpful for custom builds where clearance, lift height, and steering angles may vary.
What Comes in the Kit?

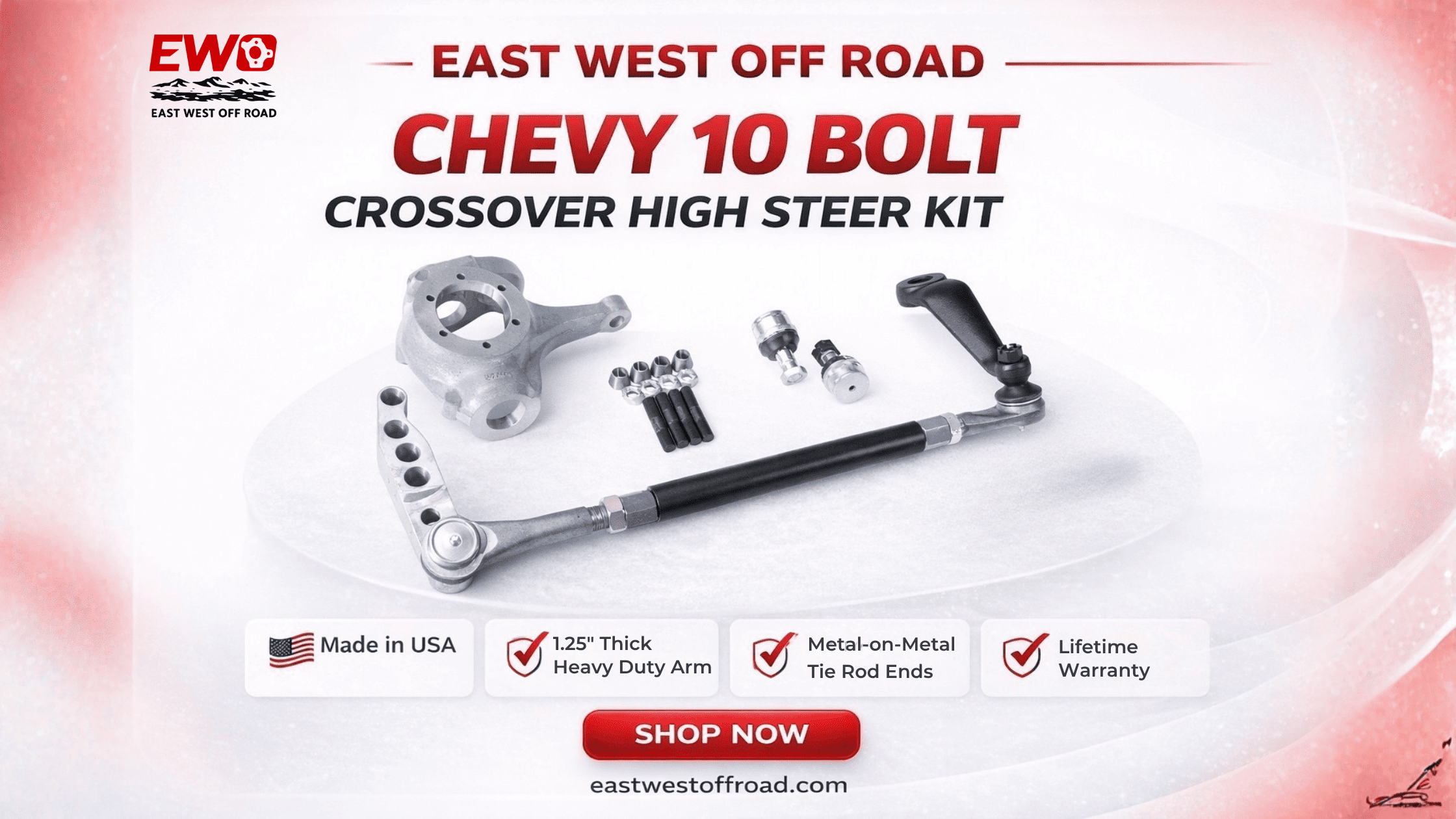

The EWO Chevy 10 Bolt Complete Crossover High Steer Kit includes:
- 1 Dana 44 / Chevy 10 Bolt EWO Knuckle
- 1 Slit Tapered Insert
- 1 Passenger Side 1.25-inch Thick High Steer Arm
- 1 43-inch x 1.50-inch x .250-inch DOM Drag Link Tubing
- 1 ES2026R Drag Link End
- 1 ES2027L Drag Link End
- 4 High Strength Dana 9/16-inch Studs
- 4 Conical Washers
- 4 Lock Nuts
- 1 Metal-on-Metal Upper Ball Joint
- 1 Metal-on-Metal Lower Ball Joint
- 1 Left Tube Adapter / Weld Bung
- 1 Right Tube Adapter / Weld Bung
- 1 Left Jam Nut
- 1 Right Jam Nut
- 1 Fully Indexable 3-inch Drop Forged Pitman Arm, 32 Splines
This complete parts package is useful for builders who want a heavy-duty crossover high steer conversion without piecing together mismatched parts.
Vehicle and Axle Compatibility
This EWO high steer kit is compatible with Chevy Dana 44 front axles and Chevy 10 Bolt / GM Corporate 10 Bolt front axles. It can also work with Jeep, Dodge, and Toyota Dana 44 axle swap builds depending on the application.
Popular compatible builds may include:
- Chevy K10
- Chevy K20
- Chevy K5 Blazer
- Chevy Suburban 1500 and 2500
- GMC Jimmy
- GMC K10 and K20
- GMC Suburban models
- Custom Dana 44 axle swap projects
Model years may range from 1969–1991 depending on the axle and setup. Always confirm your exact axle, steering box, pitman arm spline count, and installation requirements before ordering.
Who Should Use This Kit?
This kit is made for lifted Chevy and GMC owners, axle swap builders, and off-road enthusiasts who need stronger steering and better geometry.
It is a good fit for:
- Lifted Chevy K10 builds
- Chevy K20 trail trucks
- Chevy K5 Blazer off-road builds
- GMC Jimmy projects
- Chevy Suburban trail rigs
- Dana 44 axle swaps
- Chevy 10 Bolt front axle upgrades
- Rock crawling builds
- Mud trucks
- Overlanding rigs
- Custom 4x4 projects
If your lifted Chevy has steering wander, bump steer, weak steering parts, or poor front-end control, a crossover high steer kit can be a smart upgrade.
Practical Checks Before You Upgrade
Before installing a crossover high steer kit, review your complete front-end setup. Bump steer can come from geometry issues, but worn parts can make the problem worse.
Check these areas first:
- Confirm whether your axle is Dana 44 or Chevy 10 Bolt
- Inspect your steering box and frame area
- Check ball joints, bearings, and tie rod ends
- Review drag link angle after the lift
- Verify pitman arm spline compatibility
- Check tire size and wheel clearance
- Plan for welding on the tube adapters
- Get an alignment after installation
If you are not experienced with steering geometry, welding, or fabrication, professional installation is recommended.
Why Choose East West Off Road?
East West Off Road builds steering and suspension components for serious off-road use. The EWO Chevy 10 Bolt Complete Crossover High Steer Kit is designed for builders who want a stronger, cleaner, and more capable steering setup for Dana 44 and Chevy 10 Bolt front axle applications.
With a USA-made knuckle, billet high steer arm, DOM tubing, metal-on-metal steering technology, and heavy-duty hardware, this kit is made for real trail conditions and demanding 4x4 builds.
Conclusion
If you want to eliminate bump steer on a lifted Chevy, start by looking at your steering geometry. A suspension lift, larger tires, and off-road use can push factory-style steering beyond its comfort zone.
The EWO Chevy 10 Bolt Complete Crossover High Steer Kit is built to help improve steering angle, reduce bump steer, increase front-end control, and add serious strength to Dana 44 and Chevy 10 Bolt applications.
For Chevy K10, K20, K5 Blazer, Suburban, GMC Jimmy, and custom Dana 44 axle swap builds, this kit offers the components needed for a stronger crossover high steer conversion.
Buy Now: https://www.eastwestoffroad.com/product/ewo-chevy-10-bolt-complete-crossover-high-steer-kit
8. FAQs
What causes bump steer on a lifted Chevy?
Bump steer on a lifted Chevy is usually caused by poor steering linkage angles after the suspension height is changed. A steep drag link angle can cause the wheels to steer as the suspension moves.
How can I eliminate bump steer on a lifted Chevy?
To eliminate or reduce bump steer on a lifted Chevy, you need to correct steering geometry. A crossover high steer kit can help improve drag link angle and front-end control on Dana 44 and Chevy 10 Bolt applications.
Will this kit fit a Chevy 10 Bolt front axle?
Yes, this EWO kit is designed for Chevy 10 Bolt / GM Corporate 10 Bolt front axles and Chevy Dana 44 front axles. Always confirm your exact setup before ordering.
Is a high steer kit good for off-road use?
Yes, a high steer kit is useful for off-road builds because it helps improve steering geometry and provides stronger steering components for rock crawling, mud trucks, trail rigs, and overlanding vehicles.
Does this kit include a steering knuckle?
Yes, the kit includes a Dana 44 / Chevy 10 Bolt EWO knuckle along with a billet high steer arm, DOM tubing, pitman arm, ball joints, hardware, weld bungs, and steering components.
Do I need professional installation?
Professional installation is recommended if you are not experienced with steering systems, welding, suspension geometry, or custom 4x4 fabrication.
