GM 1 ton offset tie rod ends are often searched as if one category name can answer every steering question, but the real decision depends on the exact parts and interfaces in the vehicle. For E90063, the useful starting point is the verified package identity: standard ES2234R/ES2234L ends, offset ES23434R/ES23434L ends, and matching 7/8-18 left- and right-hand threaded hardware. This guide focuses on understanding the e90063 mixed-end package. It keeps the discussion at the product-selection and professional-planning level so buyers can compare the package without assuming universal fitment or turning aftermarket terminology into unsupported performance claims.
Short answer: The E90063 package combines two standard ends and two offset ends with matching 7/8-18 threaded adapters and jam nuts. The useful point is package scope: it supplies steering ends and threaded hardware for a compatible custom layout, but it does not supply tubing, a reamer, knuckles, steering arms, a pitman arm, or a steering box.
Start With the E90063 Package Scope

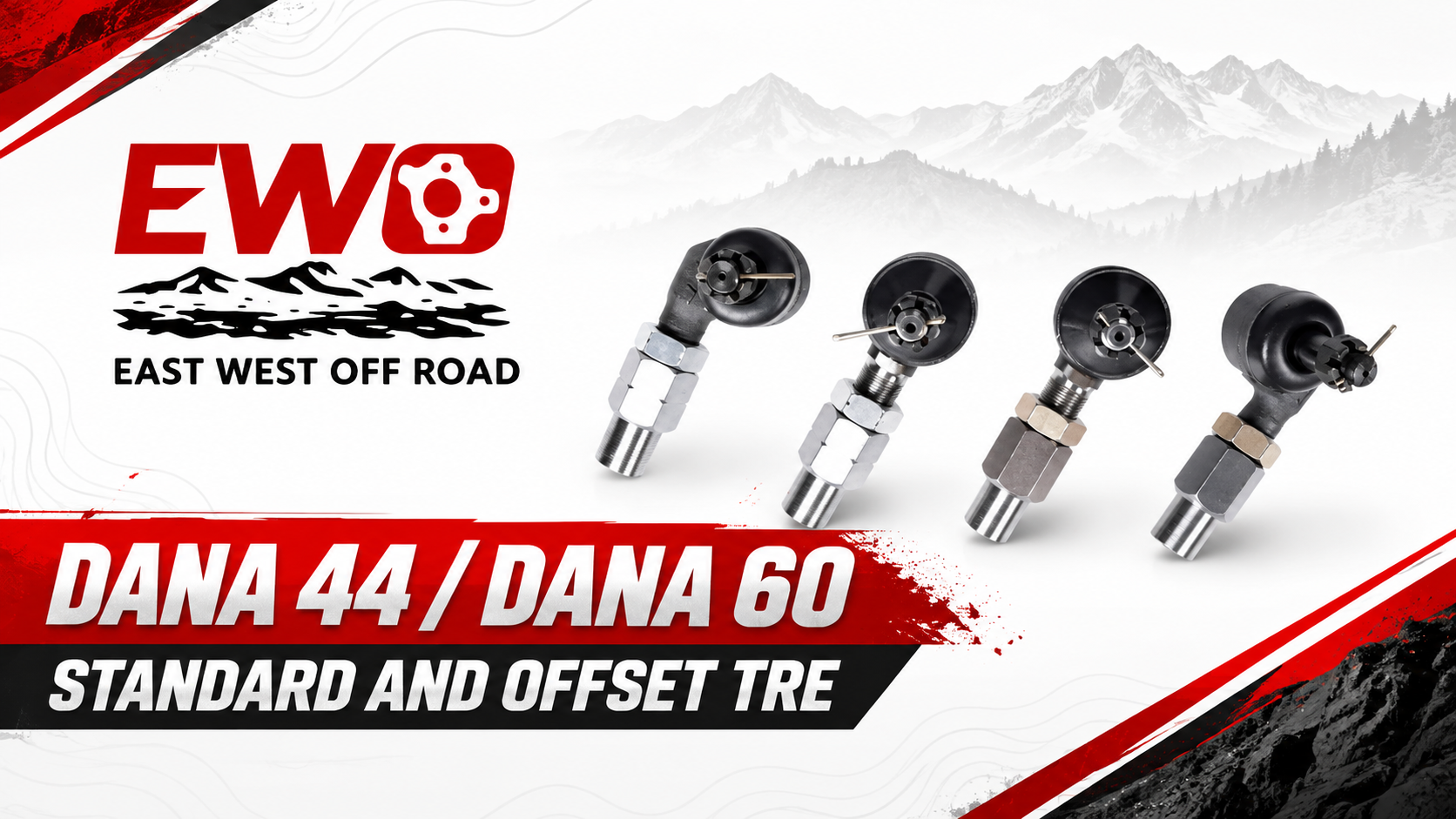

For this topic, the most important reference point is the actual E90063 inventory. East West Off Road lists one ES2234R standard right-hand tie rod end, one ES2234L standard left-hand tie rod end, one ES23434R offset right-hand tie rod end, and one ES23434L offset left-hand tie rod end. The package also lists two 7/8-18 left-hand tube adapters, two 7/8-18 right-hand tube adapters, two left-hand jam nuts, and two right-hand jam nuts. That makes it a steering-end and threaded-hardware package rather than a complete linkage.
That scope matters when researching GM 1 ton offset tie rod ends. Similar search terms can lead to complete steering systems, individual replacement ends, or bundles with tubing and reamers. E90063 does not list DOM tubing, a reamer, ES2233L, ES2026R, ES2027L, steering knuckles, high-steer arms, a pitman arm, or a steering box. Buyers comparing GM 1 ton standard tie rod ends, GM 1 ton straight tie rod ends should keep those boundaries clear so they do not budget around parts that are not actually included.
Keep the Part Numbers Exact
Part-number accuracy is central to E90063. The standard ends are ES2234R and ES2234L. The offset ends are ES23434R and ES23434L. The additional digit in ES23434 is not cosmetic. It distinguishes the offset family named in this product brief. A search for ES2234 vs ES23434 tie rod ends should therefore be answered by preserving the complete identifiers instead of shortening them into a generic 2234 label.
Part numbers also help separate replacement questions from system-design questions. If a vehicle already has an identifiable ES2234R, that is stronger evidence than an assumption based on axle model. If the installed part is an ES23434R, the offset geometry becomes part of the replacement question. A visual resemblance or common thread size is not enough to establish interchangeability.
Understand Left-Hand and Right-Hand Threads
E90063 includes both left-hand and right-hand threaded components. In this context, left-hand and right-hand identify thread direction. They do not automatically mean driver side and passenger side. That distinction is easy to miss when a catalog description uses RH and LH near a steering part number.
A right hand offset tie rod end must mate with compatible right-hand threaded hardware, while a left hand offset tie rod end requires the corresponding left-hand hardware. The same logic applies to the standard ends. Recording thread direction next to the full part number is more useful than relying on memory or physical appearance, especially when a custom steering link uses opposing thread directions for adjustment.
The assigned supporting terms for this angle describe related buyer questions rather than new fitment claims. In practical language, the discussion may touch on GM 1 ton standard tie rod ends, GM 1 ton straight tie rod ends, standard and offset TRE kit, GM 1 ton standard and offset tie rod kit, and ES23434R ES23434L offset tie rod end kit. Each phrase should be read in the context of the verified E90063 scope: four listed steering ends plus 7/8-18 threaded adapters and jam nuts. Where a phrase sounds broader than the product evidence, the article treats it as a question to verify instead of an automatic specification.
Know What the Tube Adapters and Jam Nuts Contribute
E90063 includes the threaded hardware that supports a 7/8-18 steering-link build: two left-hand tube adapters, two right-hand tube adapters, two left-hand jam nuts, and two right-hand jam nuts. That is why searches for a tie rod end kit with tube adapters or tie rod end kit with jam nuts are relevant to this package.
The adapters provide the threaded interface between compatible tubing or a fabricated link and the steering ends, while jam nuts secure the adjusted threaded relationship in the finished system. The product brief does not provide a fabrication procedure, torque value, or welding method, so those details belong with the qualified professional responsible for the steering assembly.
A Mixed Package Does Not Dictate a Universal Layout
Because E90063 includes standard and offset pairs, it is tempting to infer a single installation pattern. The source block does not support that inference. One project may need offset geometry at a clearance-sensitive connection and standard geometry elsewhere; another may use only part of the bundle in a configuration designed by a professional. The package contents provide options, not a vehicle-specific diagram.
That point is especially important when comparing right- and left-hand components. Thread hand can be part of an adjustable-link strategy, but it should not be converted into a driver-side/passenger-side rule without product-specific evidence. The actual steering design should determine where each component belongs.
Where E90063 Fits in the Buying Decision
For shoppers whose verified parts list matches this component scope, review the E90063 Dana 44 / Dana 60 Standard and Offset TRE package and compare the current listing with the project notes. The page is the correct place to confirm current commercial details such as availability or price, which should not be frozen into evergreen technical content.
Keep the buying decision tied to the physical steering system. Confirm the four end identities, the required thread hands, the adapter and jam-nut needs, and the fact that tubing and a reamer are separate. If the project calls for a different bundle scope, move to the appropriate Y-link product rather than stretching E90063 beyond what it lists.
Keep Final Steering Fitment With a Qualified Professional
Steering components are safety-critical, and a product-selection article should not substitute for an installation plan. The useful role of this guide is to help a buyer ask better questions about GM 1 ton offset tie rod ends: what part number is present, what thread hand is required, what interface it mates with, and what clearance problem is actually being solved.
Any cutting, welding, reaming, torque setting, alignment work, or redesign of steering geometry should be handled according to the vehicle, parts, and professional procedures that apply to that build. E90063 can supply the listed ends and threaded hardware, but the finished steering system still has to be assessed as a complete mechanical system.
Quick Compatibility Checklist
Package item
E90063 identity
Standard RH end
ES2234R
Standard LH end
ES2234L
Offset RH end
ES23434R
Offset LH end
ES23434L
Frequently Asked Questions
Which standard ends are listed in E90063?
E90063 lists ES2234R as the standard right-hand end and ES2234L as the standard left-hand end. Keep those full identifiers in project notes because the package also contains offset ES23434-series ends with similar numbering.
Which offset ends are listed in E90063?
The offset pair is ES23434R and ES23434L. The extra digit in the part number matters and should not be dropped. Treat the R and L suffixes as part of the exact component identity and verify how thread hand applies in the intended link.
Is E90063 a complete GM 1 ton steering system?
No. It is a mixed steering-end and threaded-hardware package. The source block does not list tubing, a reamer, knuckles, high-steer arms, a pitman arm, or a steering box. Those parts should be planned separately when the project requires them.
Why combine standard and offset ends in one package?
A mixed package can support projects in which different steering positions have different packaging needs. The package contents do not prescribe one universal layout, however. A qualified professional should determine where standard or offset geometry belongs in the actual system.
Do the words GM 1 ton prove vehicle fitment?
No. “GM 1 ton” is aftermarket terminology used for a steering-end family. It is not a universal application label or certified load rating. Part numbers, thread hand, taper interface, geometry, and the real steering configuration still need to match.
Conclusion
The best answer to gm 1 ton offset tie rod ends: understanding the e90063 mixed-end package is to work from exact component identity and the real steering layout. E90063 supplies a defined mix of standard and offset ends with 7/8-18 adapters and jam nuts, but it does not replace fitment confirmation, fabrication planning, or professional steering assessment. If the project notes match the package scope, review the current E90063 product page and confirm any remaining compatibility question before ordering. That approach keeps the purchase tied to documented interfaces rather than a broad axle name, a “1 ton” label, or appearance alone.
