Dana 60 Drag Link Kit: The Missing Link for Ultimate Trail Control
When you are piloting a heavy off-road rig through aggressive rock gardens or rutted-out muddy trails, steering precision is the difference between conquering an obstacle and breaking on the trail. If you have upgraded to a solid one-ton front axle but are still fighting a wandering steering wheel, you desperately need a heavy-duty Dana 60 Drag Link Kit. The factory push-pull linkage on older trucks simply wasn't engineered to handle the steep angles of suspension lifts or the massive leverage exerted by 37-inch to 40-inch tires.

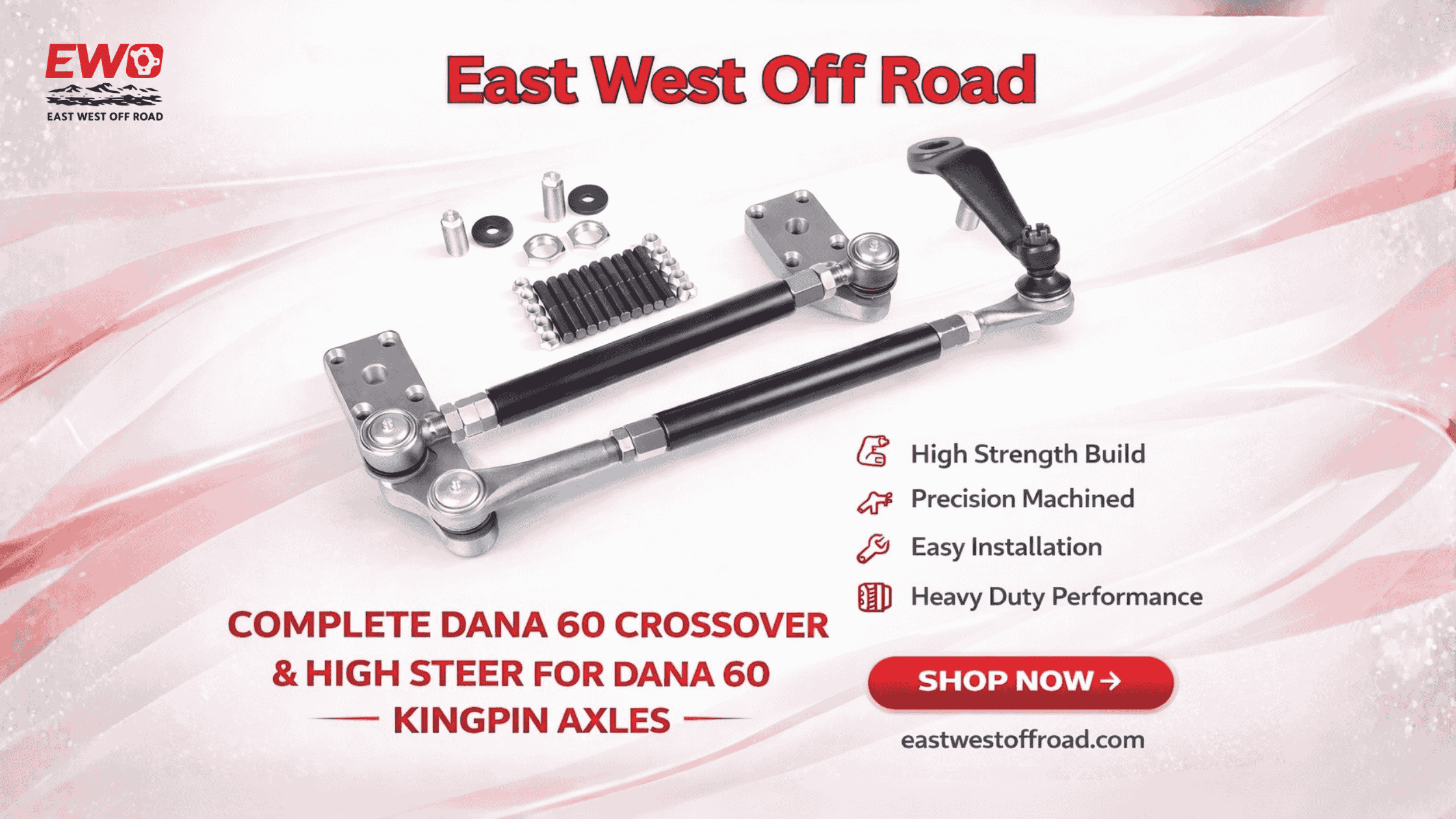

If you want to eliminate bump steer and ensure your rig tracks dead-straight on the highway, it's time to ditch the weak factory components. The East West Offroad Dana 60 kit is purpose-built to transform your sloppy steering into a rock-solid, bind-free setup that can handle whatever the backcountry throws at it.
Why Your Rig Demands an Off Road Crossover Steering Setup
Stock steering geometries quickly become a liability when you start adding lift springs and long-travel shocks. As your suspension droops, the factory drag link is pulled into a severe angle, causing the suspension to fight the steering box. This results in the vehicle trying to steer itself over every bump.
Transitioning to a proper Off Road Crossover Steering geometry fixes this by rerouting the drag link to the passenger side knuckle. This flattening of the steering angle is crucial for drivability. For classic truck builders dealing with interference from engine crossmembers, a Chevy Dana 60 Crossover Steering conversion provides the necessary clearance to let your suspension articulate fully without smashing your linkages.
The Core of the Complete Dana 60 Kingpin Steering Kit
You can't bolt heavy-duty tubing to weak factory knuckles and expect it to survive. A reliable 1 Ton Steering Upgrade Kit starts with the foundation: the steering arms.
Unbreakable Billet Arms and High-Strength Hardware
Cast metal arms are notorious for cracking under the immense torsional load of hydraulic assist rams. The EWO kingpin high steer kit completely bypasses this risk by featuring massive 1.25 inch thick Dana 60 billet arms. Machined from premium domestic billet blocks, these driver and passenger side arms provide an indestructible anchor point for your steering.
To ensure these arms never shear off the knuckle, the kit utilizes a 5 hole pattern Dana 60 steering arms design. Clamping this Dana 60 High Steer Arms 5 Stud configuration down to the axle are ten Dana 60 high strength studs 180000 PSI alongside matching tapered nuts. This unmatched clamping force is the hallmark of a true Kingpin Dana 60 Steering Upgrade.
Fabricating Your Custom Tie Rod and Drag Link
A high-clearance steering system isn't a one-size-fits-all product. Because every custom rig has a unique track width and lift height, this Dana 60 Drag Link Kit is designed for the fabricator who demands perfect fitment.
Building with DOM Trail Armor
Standard hollow pipe will bend like a paperclip the first time it drags across a granite ledge. That’s why building a Dana 60 crossover steering with DOM tubing is standard practice for serious off-roaders. This kit includes over-length, ultra-thick 1.50 OD 250 wall DOM tubing:
- 1 - 54" tube (ideal for the main tie rod)
- 1 - 43" tube (ideal for the drag link)
You measure your specific axle, cut the raw tubing to length, and professionally weld the included left and right 7/8-18 weld bungs and jam nuts into the ends.
Heavy-Duty GM 1 Ton Tie Rod Ends
To tie your custom-cut DOM tubing to your new billet arms, you need pivot points that refuse to wallow out. This complete Dana 60 kingpin steering kit incorporates legendary GM 1 Ton Tie Rod Ends that provide high-angle articulation without the slop. The comprehensive Dana 60 Kingpin Parts hardware package features:
- ES2026R ES2027L drag link ends
- ES2234L ES2234R tie rod ends
- 2 threaded screws, 2 grease fittings, and 2 spacers.
(Please note: A pitman arm is optional depending on your specific lift requirements). By pairing these rugged joints with a Dana 60 High Steer Kit, you move your most vital Dana 60 Crossover Steering components high above the axle centerline, protecting them from devastating rock strikes.
Frequently Asked Questions (FAQs)
What is the difference between a drag link and a tie rod?
The drag link is the steering component that connects the pitman arm (on the steering box) to the passenger-side steering knuckle, directly transferring your steering wheel input to the axle. The tie rod connects the passenger-side knuckle to the driver-side knuckle, ensuring both wheels turn simultaneously.
Do I need to know how to weld to install this kit?
Yes, structural welding is an absolute requirement. Because the 1.50" OD .250 wall DOM tubing is shipped in raw 54-inch and 43-inch lengths to accommodate different custom builds, you must measure, cut, and professionally TIG or MIG weld the threaded weld bungs into the tube ends.
Will upgrading my drag link fix "death wobble"?
While "death wobble" can stem from various loose or worn suspension components (such as track bar bushings or unbalanced tires), a flexing drag link and worn tie rod ends are major contributors. Upgrading to a heavy-duty 1-ton kit with massive GM tie rod ends removes the steering slop that often triggers violent wheel shimmy.
