When you lift a solid-axle vehicle, you aren't just changing its height—you are fundamentally altering its steering geometry. For those running the legendary Kingpin front axle, a factory steering setup often results in a vague, wandering feel on the road and dangerous "bump steer" on the trail. Installing a professional Dana 60 crossover steering kit is the single most effective way to restore steering precision and ensure your rig handles as well as it looks.
Solving the Geometry Puzzle: Why Crossover Matters
The primary goal of any Dana 60 crossover steering kit is to correct the operating angle of the drag link. In a stock "push-pull" configuration, a lift kit forces the drag link into a steep angle. Every time your suspension cycles up or down, this angle changes, forcing the wheels to turn without any input from the driver.
By converting to a crossover setup, you relocate the drag link to a high-clearance arm on the passenger-side knuckle. This Dana 60 kingpin crossover steering configuration keeps the linkage parallel to the axle and your track bar, eliminating bump steer and providing a linear, predictable steering feel that is essential for both highway safety and technical rock crawling.

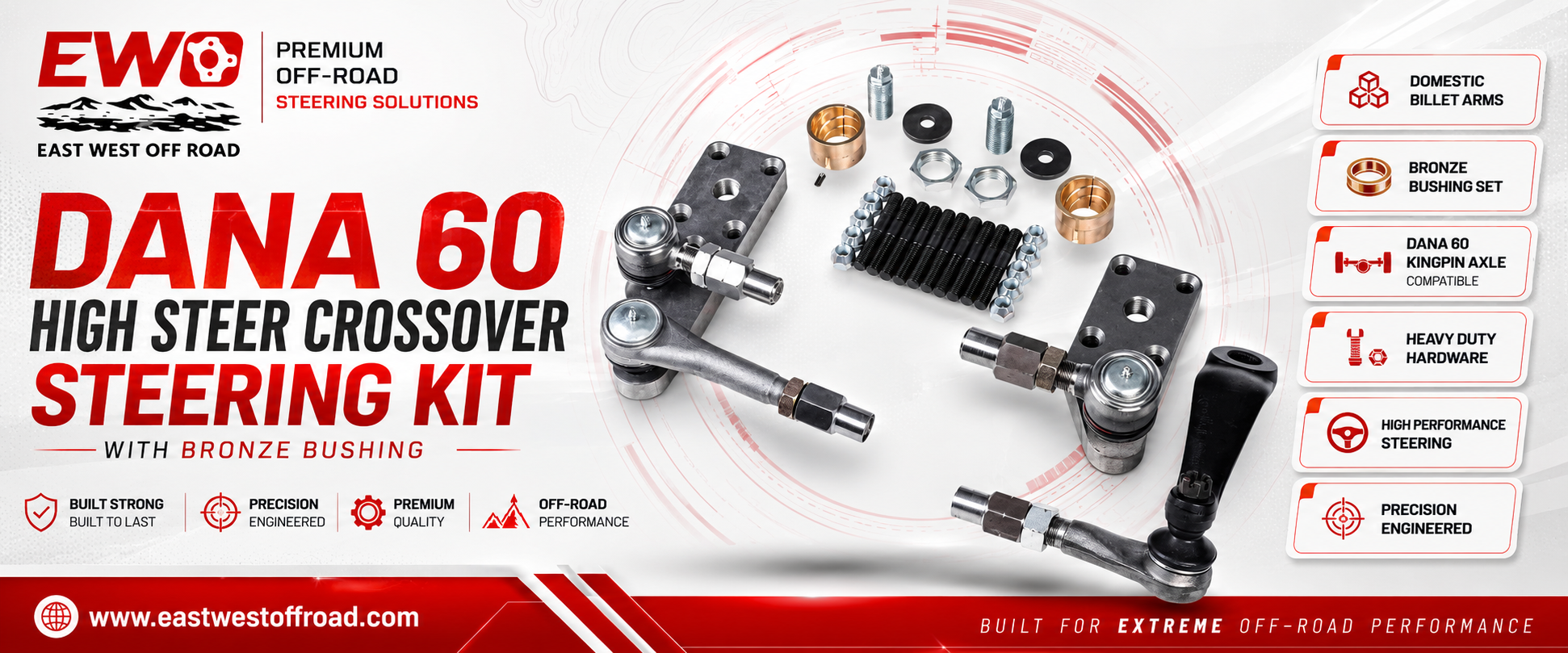

Overbuilt for the Extreme: Billet Dana 60 Steering Arms
At the heart of the East West Offroad Dana 60 kit are components designed to handle the massive torque of oversized tires. While cast arms are prone to cracking under stress, our billet Dana 60 steering arms are CNC-machined from solid domestic blocks for ultimate reliability.
- 1.25 Inch Thick Dana 60 Arms: These are significantly beefier than standard market offerings, providing a rock-solid foundation that resists bending and shearing.
- Universal Compatibility: Featuring a 5 hole Dana 60 steering arms pattern, these are natively Reid compatible Dana 60 arms.
- Stock Friendly: They are 100% compatible with factory 4-hole knuckles—simply leave the fifth hole empty and enjoy a massive upgrade in structural rigidity.
The 1-Ton Performance Standard: GM Heavy-Duty Joints
A heavy-duty axle requires heavy-duty joints. This package operates as a complete GM 1 ton steering kit conversion, utilizing the strongest components available in the off-road industry.
Professional Grade Components
To ensure your linkages are bulletproof, this kit includes:
- The high-angle ES2026R drag link kit and hardware.
- A robust ES2027L drag link end.
- Massive ES2234L ES2234R tie rod ends.
Because custom builds feature unique track widths, this system is provided as a Dana 60 high steer without DOM tubes. We provide the high-strength 7/8-18 weld bungs and jam nuts so you can cut your locally sourced tubing to the exact custom length your specific suspension requires.
Eliminating Death Wobble: Springless Technology
The original Kingpin design uses a coil spring and a nylon cone that eventually wear out, leading to steering slop and the violent shaking known as "death wobble." Our springless Dana 60 high steer design solves this vulnerability once and for all.
By utilizing the Dana 60 bronze bushing high steer kit, you replace the weak factory spring with a solid bronze bushing and a threaded preload set screw. This Dana 60 kingpin high steer upgrade allows you to mechanically lock in the tension on your knuckles, resulting in a tight, slop-free steering feel that outlasts any factory setup.
Frequently Asked Questions (FAQs)
What is the primary benefit of a Dana 60 crossover steering kit?
The main benefit is geometry correction. It flattens the drag link angle, which eliminates bump steer and provides a much more stable and predictable steering feel for lifted vehicles.
Can I install these 1.25-inch thick arms on factory 4-hole knuckles?
Absolutely. While they are designed as 5 hole Dana 60 steering arms to be Reid compatible Dana 60 arms, they bolt directly onto standard factory 4-hole knuckles without modification.
Why is a springless Dana 60 high steer better?
A springless Dana 60 high steer setup replaces the compressible factory spring with a solid bronze bushing. This prevents the kingpin from getting loose as it wears, effectively eliminating the slop that causes death wobble.
