If you have lifted your off-road rig, you are likely all too familiar with the terrifying handling issues that follow. Bump steer, highway wander, and unpredictable feedback are common when factory steering angles are pushed past their limits. The permanent solution to these geometry problems is upgrading to a Dana 44 High Steer Kit. By relocating your steering linkages higher and optimizing your angles, you can restore precision control and tackle the toughest trails with total confidence.
Why You Need a Heavy-Duty Steering Solution
Factory push-pull steering systems were never designed for the extreme articulation and massive tire sizes of modern off-roading. When you install a lift, your drag link angle becomes dangerously steep. Upgrading to a premium Chevy Dana 44 Crossover Steering Kit corrects this by moving the drag link to sit horizontally across the axle.
For classic truck enthusiasts, a Square Body Crossover Steering Conversion is widely considered a mandatory modification for drivability and safety. Transitioning to a true Off Road Crossover Steering System entirely eliminates the binding factory steering block, allowing for maximum suspension flex and a much tighter turning radius. When you need bulletproof reliability, an hd crossover steering kit is the only way to go.
Unmatched Quality: East West Offroad Steering Parts

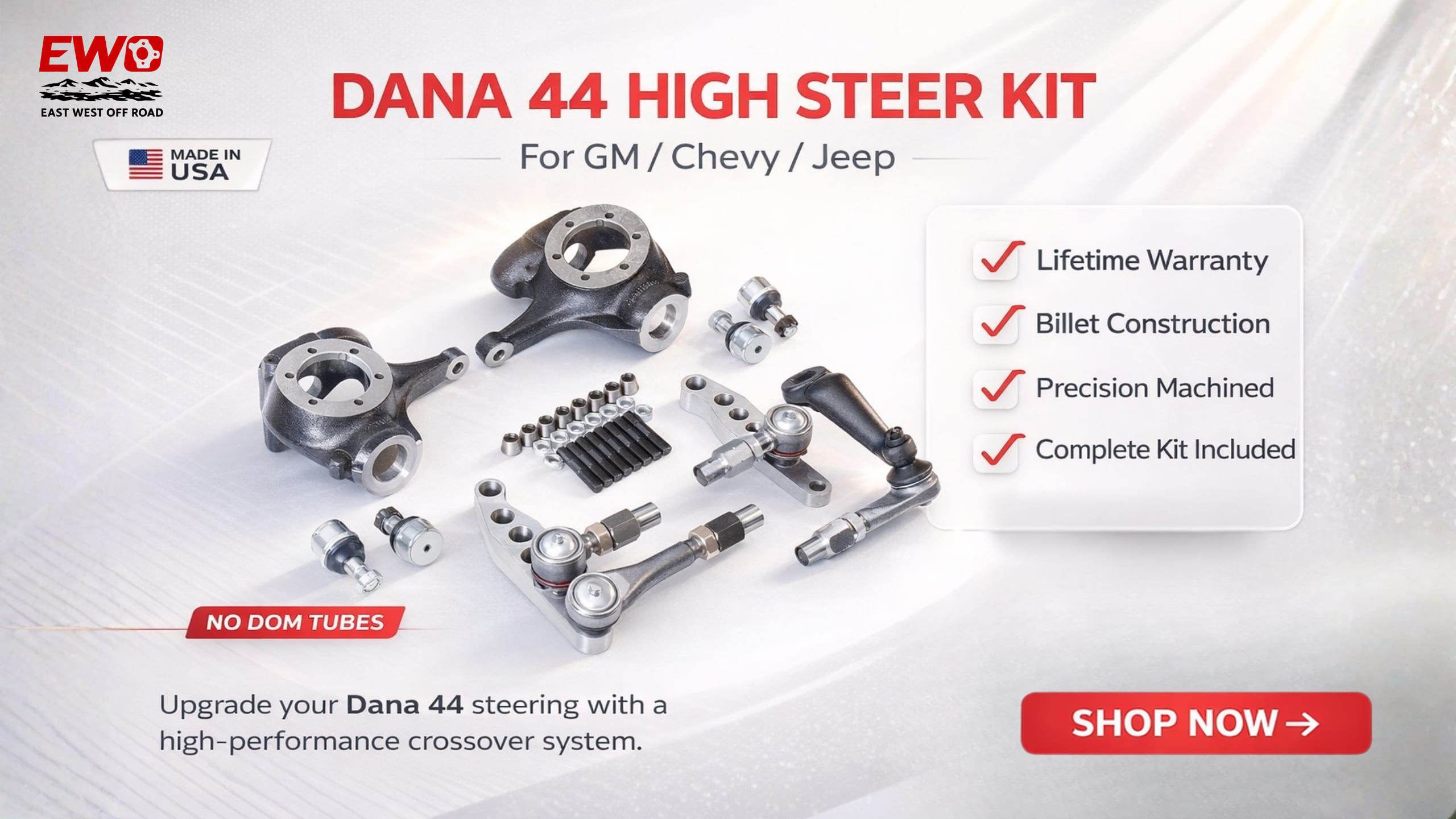

Not all steering kits are created equal. When your safety is on the line, you need USA-made quality. This complete GM 1 Ton Steering Upgrade is manufactured in-house by East West Off Road (EWO) from top-tier materials.
Instead of cheap cast metal, this kit features 1.25 inch thick billet steering arms crafted from solid domestic billet blocks. These 1 Ton High Steer Arms Dana 44 utilize a robust 4-hole mounting style specifically designed for EWO knuckles. Because they are built to withstand extreme trail abuse, these components are backed by an industry-leading lifetime warranty.
Exploring the Dana 44 Steering Knuckle Kit
A high-steer conversion is only as strong as its foundation. This package includes an elite Dana 44 Steering Knuckle Kit to ensure perfect fitment and ultimate strength.
You receive newly machined Dana 44 driver passenger flat top knuckles designed right here in the USA. These Dana 44 Flat Top Knuckles feature a specialized bottom down taper knuckle Dana 44 design, ensuring a highly secure fit for your steering components that won't vibrate loose under heavy loads. To guarantee your outer assembly is completely refreshed, the kit also ships with brand new Dana 44 upper lower ball joints.
The Dana 44 DIY Steering Kit Advantage
Every custom off-road build is unique. Lift heights vary, axle widths differ, and suspension setups change. That is exactly why professional fabricators prefer this GM Jeep Dana 44 1-ton crossover kit.
This setup is purposefully designed as an EWO complete high steer kit without DOM tubing. Supplying 1 ton steering without DOM tubing gives you the freedom to locally source your own Drawn Over Mandrel (DOM) steel. You can measure, cut, and weld your linkages to the exact millimeter your specific rig requires.
To complete your custom fabrication, the kit is fully loaded with massive joints that are tapered specifically for Chevy 3/4 ton tie rod arms, including:
- ES2026R ES2027L drag link ends (with grease fittings, castle nuts, and cotter pins)
- ES2234L ES2234R tie rod ends (with grease fittings, castle nuts, and cotter pins)
- Left and right 7/8-18 tube adapters/weld bungs and jam nuts
- High strength Dana 9/16”-18 studs, conical washers, and lock nuts
Essential Hardware: 2WD Box and Pitman Arm
To properly complete this geometry overhaul, a factory 4WD steering box will not work. You will need a 2WD box crossover steering kit setup because the sector shaft on a 2WD box sweeps side-to-side, which perfectly matches the horizontal motion of a crossover drag link. To make mating your new linkages to your 2WD steering box effortless, this kit includes a fully indexed 3 inch drop pitman arm 32 splines.
Frequently Asked Questions (FAQs)
What vehicles are compatible with this steering upgrade?
This premium high steer kit is engineered to fit all Dana 44 solid front axle setups across GM, Chevy, and Jeep off-road vehicles.
Why is the kit sold without DOM tubing?
Selling the kit without pre-cut tubes saves you significant money on heavy shipping costs. More importantly, it allows custom fabricators to measure and cut their own steel to the exact custom lengths required for their unique lift height and axle width, ensuring flawless geometry.
Do I really have to swap to a 2WD steering box?
Yes. Factory 4WD steering boxes on these classic vehicles sweep front-to-back. Crossover steering requires a side-to-side sweeping motion to properly operate the drag link without binding. A 2WD steering box provides this correct motion.
Does this kit come with a warranty?
Absolutely. The massive 1.25" thick billet steering arms are manufactured in the USA by East West Off Road and are backed by a lifetime warranty for maximum durability and reliability on the trail. (Please note the standard California Proposition 65 warning regarding chemical exposure applies to these machined parts).
