Lifting your classic solid-axle GM truck is the definitive way to conquer aggressive trails and fit massive mud-terrain tires. However, installing that lift immediately throws your factory steering geometry into chaos. If your rig is wandering across the highway or fighting your every move on the rocks, it is time for a serious upgrade. Installing a premium Dana 44 High Steer Kit with Knuckle is the ultimate intervention. By replacing your vulnerable, steep-angled factory linkage with a heavy-duty crossover system, you regain the predictable handling and bulletproof strength required for hardcore American off-roading.
The Problem with Factory Steering on Lifted Trucks
The original push-pull steering system on your rig was engineered to operate horizontally at stock ride heights. The moment you add lift springs, the distance between your steering box and the front axle increases. This pulls your drag link into a severe downward slope.
Every time your suspension compresses or droops over uneven terrain, it physically pulls the steering linkage. This geometry flaw causes the steering wheel to violently jerk left and right. To safely and permanently Eliminate Bump Steer Lifted Chevy owners experience, you must flatten this angle. An hd crossover steering kit solves the issue by routing the linkage horizontally across the front axle, providing a side-to-side motion that tracks perfectly straight.

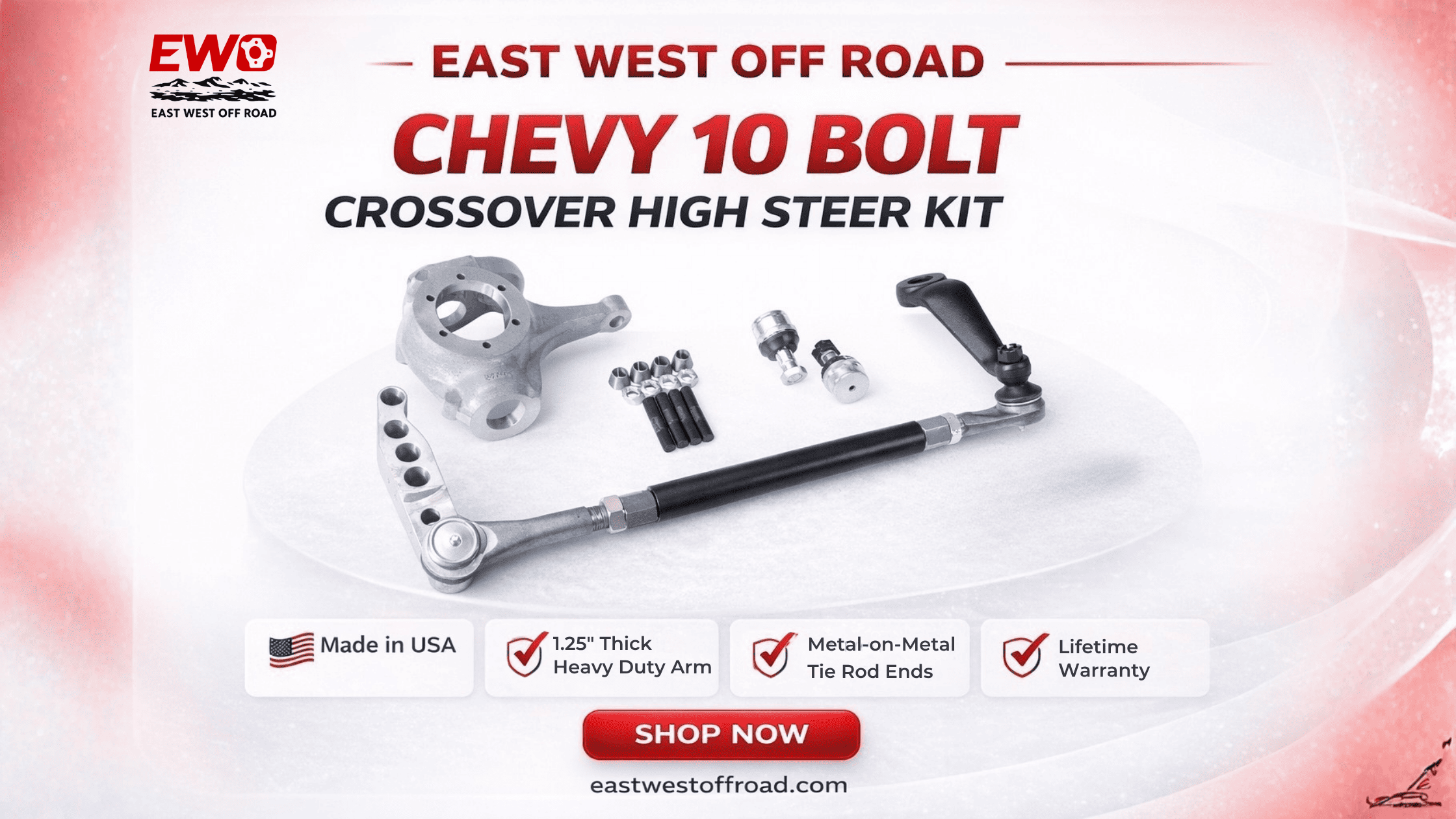

Inside the EWO Complete Crossover High Steer Kit
When you are relying on your vehicle deep in the backcountry, using mismatched junkyard parts for a Dana 44 to 10 Bolt Steering Swap is a major risk. The East West Offroad steering kit provides a fully integrated, premium USA-engineered solution that reinforces every weak point in your front end.
The Ultimate Flat Top Knuckle Conversion Kit
A true Offroad crossover steering Dana 44 setup demands a rock-solid foundation. This system begins with a USA-made Dana 44 high steer knuckle, precision-machined with a "Bottom Up" taper (a slit tapered insert is also included if you need a "Bottom Down" orientation).
Bolted firmly to this casting are massive 1.25 inch billet high steer arms. Machined in-house from domestic billet blocks, these 4-hole style passenger-side arms are practically indestructible and carry a lifetime warranty. To ensure flawless pivoting under the extreme pressure of off-roading, the package also incorporates a heavy-duty Dana 44 upper lower ball joint kit.
A Genuine GM 1 Ton Tie Rod Upgrade
Connecting your steering gear to the new knuckle requires a linkage that absolutely refuses to flex. This package functions as a complete Heavy Duty Drag Link Kit Chevy upgrade.
You receive a 43-inch DOM tubing drag link kit constructed from ultra-thick 1.50” x .250” wall tubing. This gives you the premium raw material needed to fabricate a custom link for your exact lift height. Capping off that robust tubing are incredibly durable ES2026R ES2027L drag link ends. These high-performance metal to metal tie rod ends are engineered with advanced spring technology to drastically outlast standard, plastic-lined joints. The EWO complete crossover high steer kit also includes all essential hardware: 7/8 – 18 left and right weld bungs, jam nuts, high-strength Dana 9/16” studs, conical washers, and lock nuts.
Mandatory Chassis Modifications
To build a reliable Heavy duty crossover steering Dana 44 system, a major modification must be made to your chassis-side steering gear.
Factory 4WD steering boxes utilize a front-to-back sweeping motion that is completely incompatible with a side-to-side crossover setup. You must execute a 2wd steering box crossover swap. The 2WD gear box allows the sector shaft to swing laterally. Once the 2WD gear is securely bolted to the frame, the included 3 inch drop forged pitman arm 32 spline easily attaches. This forged arm is fully indexable, ensuring perfect alignment for your new Chevy 10 bolt steering conversion.
Frequently Asked Questions (FAQs)
Will this kit work for both Dana 44 and Chevy 10 Bolt front axles?
Yes! The geometry and bolt patterns are universally engineered to be fully compatible with both applications, making it the perfect Chevy 10 Bolt Crossover High Steer Kit for your classic GM build.
Does this kit help create a K5 Blazer High Steer System?
Absolutely. Upgrading the front end of your Blazer with this comprehensive Dana 44 crossover steering setup will transform your handling, making it highly capable on the trail and safe on the highway.
Why are metal-to-metal tie rod ends better for a Chevy 10 bolt crossover steering kit?
Standard factory tie rod ends utilize internal plastic or nylon wear liners. Under the immense stress of turning large off-road tires, these liners quickly crush and degrade, creating dangerous "slop." The metal-on-metal joints in this Chevy 10 bolt steering upgrade provide a steel friction surface combined with advanced spring technology, resulting in a much tighter, stronger connection.
Do I need to weld the DOM tubing for this installation?
Yes. Because every custom truck features slightly different suspension geometry and lift heights, the kit includes a blank 43-inch DOM tube. You must measure the exact required length for your rig, cut the tube, and professionally weld the threaded tube adapters into the ends for a safe, secure fit.
