When you install a major suspension lift on a classic solid-axle rig, your factory steering geometry instantly becomes the weakest link. To run larger tires safely and survive intense trail terrain, executing a complete Dana 44 Flat Top Knuckle Conversion is the ultimate mechanical fix. The factory "push-pull" steering configuration was never intended to handle severe suspension lift angles. By switching to a flat top knuckle design, you gain the ability to mount your steering linkages high above your leaf springs, completely changing how your truck handles both on the highway and over the rocks.
The Engineering Behind the Flat Top Conversion
Standard factory steering knuckles position the tie rod and drag link below the axle centerline. While fine for a stock daily driver, a lifted suspension pulls the steering gear box away from the axle, forcing the short factory drag link into a steep, downward angle.
Why Relocating Linkages Saves Your Front End
This extreme angle severely restricts your front axle's articulation and binds your rod ends. More critically, it creates a punishing handling trait known as bump steer. Every time your front tires cycle over a rut, the steep drag link dynamically pushes and pulls against your knuckle, making the vehicle dart unpredictably. To permanently Fix Bump Steer Lifted Chevy K5 and K10 rigs, you must elevate the steering connections. This modification flattens the operating angle, rendering your steering completely independent of vertical suspension travel.
Dana 44 vs 10 Bolt Crossover Steering
A point of clarity for classic GM owners is understanding Dana 44 vs 10 Bolt Crossover Steering compatibility. Because the outer knuckle castings, spindle bolt patterns, and ball joint tapers are virtually identical between the GM Corporate 10 Bolt and the GM Dana 44 front axles, you can use high-end Dana 44 flat top architecture directly on a 10 Bolt front end. This enables a robust Chevy 10 Bolt Crossover Steering Kit upgrade without requiring a costly total axle housing swap.
The East West Off Road Advantage: Heavy-Duty Strength
Sourcing decades-old factory flat top knuckles from a junkyard means risking micro-fractures, and paying a machine shop to mill, drill, and tap them adds significant delay and expense. The East West Off Road steering kit removes the guesswork by delivering a complete, driveway-ready package manufactured right here in the USA.
Premium Driver and Passenger Flat Top Knuckles
The foundation of this package consists of brand-new Dana 44 driver passenger flat top knuckles. Cast and machined with extreme precision, these heavy-duty knuckles feature an EWO-engineered “Bottom Down” taper. This design works seamlessly as an immediate K10 Crossover Steering Kit No Reaming required solution, sparing you hours of custom reaming or fabrication work.
USA-Made Billet High Steer Arms
Bolted securely to these knuckles are two ultra-rugged USA Made Dana 44 Steering Arms. Machined in-house from solid domestic billet blocks, these 1.25 inch billet high steer arms utilize a robust 4-hole mounting pattern. Backed by a lifetime warranty, their extreme wall density prevents shearing or bending under the high leverage forces generated by 35-inch to 40-inch tires.

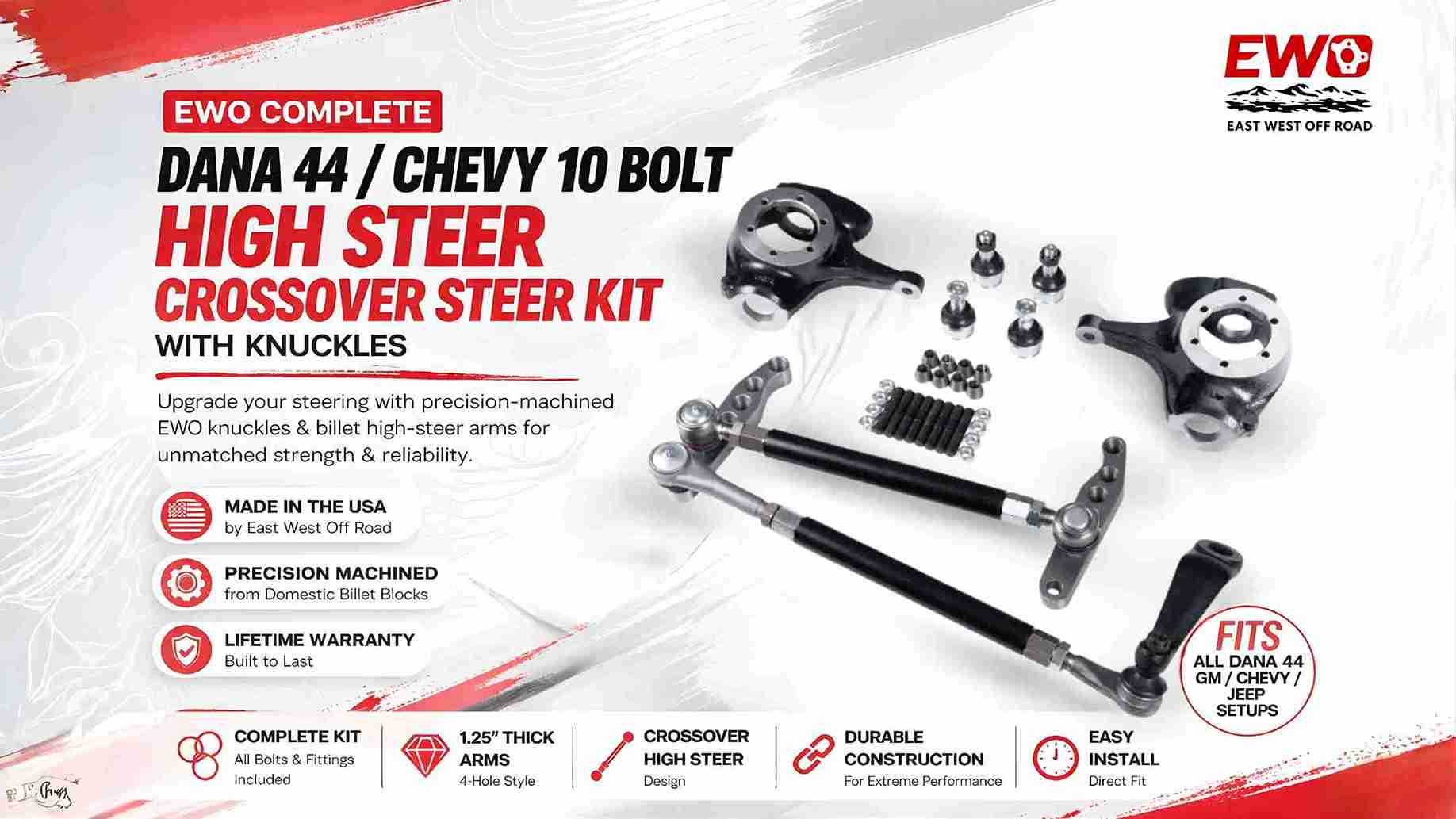

Component Breakdown of the Complete Kit
This heavy-duty system is a comprehensive front-end overhaul, transforming your steering from a loose, vulnerable assembly into a robust, high-clearance configuration. Whether you are conducting a classic Square Body Chevy High Steer Upgrade or outfitting a custom Jeep Dana 44 high steer upgrade, the kit includes everything required:
- Indestructible DOM Tubing: The kit provides a 1.50 x .250 DOM tubing steering kit package featuring a 54-inch tube and a 43-inch tube, thick enough to withstand direct rock impacts.
- Massive 1-Ton Rod Ends: Ditch weak factory linkages for high-strength articulation components, including ES2026R ES2027L drag link ends and ES2234L ES2234R tie rod ends. Every end includes grease fittings, castle nuts, and cotter pins.
- High-Tensile Hardware: Included are eight high-strength Dana 9/16”-18 studs, matching conical washers, and lock nuts to safely anchor your billet steering arms.
- Adapters and Rebuild Essentials: The package includes left/right 7/8–18 tube adapters (weld bungs), heavy jam nuts, a complete Dana 44 upper lower ball joints kit to completely refresh your pivot points, and a fully indexed 3 inch dropped pitman arm 32 spline.
Mandatory Chassis Requirement: The 2WD Steering Box
Before executing this Bolt-On High Steer Kit GM 10 Bolt conversion, it is crucial to verify your chassis steering gear box. A stock 4WD steering box operates with a side-to-side sector shaft rotation. Because a crossover drag link spans horizontally across the axle, a side-to-side sweep cannot actuate it.
To complete your install, you must transition to a 2wd steering box crossover setup. Swapping out your 4WD gear box for a standard GM 2WD box changes the sector shaft motion to a front-to-back sweep, delivering the mechanical motion required to smoothly push and pull your newly relocated crossover drag link.
Frequently Asked Questions (FAQs)
Will this flat top knuckle conversion fit a standard Corporate 10 Bolt front axle?
Yes. The outer spindle assemblies, brake brackets, wheel bearings, and ball joint positions match exactly between the GM Corporate 10 Bolt and the GM Dana 44. This kit serves as a premium, heavy-duty Chevy 10 bolt high steer with knuckles upgrade.
Is welding required to complete this high steer conversion?
Yes. While the knuckles, ball joints, and billet arms bolt directly onto your axle housing, the included 7/8–18 left and right tube adapters (weld bungs) must be professionally welded into the thick-walled DOM steering tubes to thread in your heavy-duty tie rod and drag link ends.
Why do I need to switch to a 2WD steering gear box?
Your factory 4WD box moves left-to-right to operate the original short, push-pull drag link on the driver's side. Crossover steering requires a front-to-back stroke to move the elongated drag link across the front axle to the passenger side arm, which is precisely how a 2WD steering box operates.
What does the "Bottom Down" taper design mean for installation?
The "Bottom Down" taper design engineered into the EWO flat top knuckles allows the heavy-duty tie rod ends to drop in from the bottom up. This maintains safe operating clearance away from your leaf spring pack while ensuring compatibility with robust 3/4-ton tie rod tapers without the need for custom machine shop modifications.
Can I use this system on a custom axle swap or non-Chevy vehicle?
Yes. This kit is incredibly versatile and accommodates all standard Dana 44 front axle configurations for GM, Chevy, and Jeep vehicles sharing the classic flat top knuckle architecture, making it an exceptional choice for heavy-duty custom axle builds.
