A Dana 44 to 10 Bolt Steering Swap is a common topic for builders working on older Chevy, GMC, Jeep, and custom 4x4 front axle setups. Dana 44 and Chevy 10 Bolt front axles are both widely used in solid axle builds, and steering geometry becomes a major focus once lift kits, larger tires, and off-road terrain are involved.
When the steering setup is not matched to the axle and suspension, the vehicle can feel loose, unpredictable, or difficult to control. Bump steer, poor drag link angle, weak steering response, and worn factory-style components can all make a capable rig harder to drive.
The EWO Chevy 10 Bolt Complete Crossover High Steer Kit is designed for Dana 44 and Chevy 10 Bolt front axle applications. It gives builders a heavy-duty crossover high steer solution with a USA-made EWO steering knuckle, 1.25-inch thick billet high steer arm, DOM drag link tubing, metal-on-metal steering technology, and a fully indexable 3-inch drop forged pitman arm.
What Is a Dana 44 to 10 Bolt Steering Swap?
A Dana 44 to 10 Bolt Steering Swap generally refers to steering upgrades or conversion planning around Dana 44 and Chevy 10 Bolt front axle applications. These two axle platforms are often discussed together because they appear in many classic GM truck builds, axle swap projects, and off-road steering conversions.
The goal is not just to bolt on stronger parts. The real goal is to create a steering setup that works correctly with the axle, lift height, tire size, and suspension movement.
For compatible Dana 44 and Chevy 10 Bolt front axles, a crossover high steer kit can help improve steering geometry, add stronger components, and support better control during trail use.
Why Steering Geometry Matters During a Swap
A steering swap can expose problems that were not obvious before. If the drag link angle is too steep or the steering linkage does not line up correctly, the truck may wander, dart over bumps, or feel unstable during suspension travel.
This is especially common on lifted Chevy K10, K20, K5 Blazer, Suburban, and GMC builds where the front axle and steering box relationship has changed.
A properly planned crossover high steer conversion can help with:
- Improved steering geometry
- Reduced bump steer
- Better drag link angle
- Stronger front-end control
- More predictable steering response
- Added durability for larger tires
- Better performance on rocks, mud, trails, and uneven terrain
For off-road builds, steering strength and steering angles must work together. A strong part in the wrong position can still create poor steering feel.
About the EWO Chevy 10 Bolt Complete Crossover High Steer Kit
The EWO Chevy 10 Bolt Complete Crossover High Steer Kit is built for Dana 44 and Chevy 10 Bolt front axle applications. It is designed for serious off-road use, including rock crawling, overlanding, mud trucks, trail rigs, Chevy truck builds, Jeep builds, and custom 4x4 projects.
This kit includes many of the key components needed for a heavy-duty crossover high steer conversion. Instead of sourcing the knuckle, high steer arm, drag link tubing, hardware, ball joints, weld bungs, and pitman arm separately, builders get a more complete package designed for compatible axle setups.
For anyone planning a Dana 44 to 10 Bolt Steering Swap or steering upgrade, this helps reduce guesswork and supports a cleaner build.
Key Features and Benefits
USA-Made EWO Steering Knuckle
The kit includes a USA-made EWO steering knuckle designed for Dana 44 / Chevy 10 Bolt applications. The knuckle is a critical part of the steering setup because it supports the high steer arm and helps the conversion line up properly.
1.25-Inch Thick Billet High Steer Arm
The passenger-side high steer arm is 1.25 inches thick and precision-machined in-house from domestic billet blocks. It is built to handle demanding steering loads from larger tires, trail obstacles, rocks, ruts, and mud.
EWO also provides a lifetime warranty on steering arms, giving builders added confidence for hard-use off-road applications.
Heavy-Wall DOM Drag Link Tubing
The included drag link tubing measures 43 inches long with a 1.50-inch outside diameter and .250-inch wall thickness. Heavy-wall DOM tubing is a strong choice for off-road steering because it supports durability under stress and suspension movement.
Metal-on-Metal Steering Technology
The kit includes metal-on-metal steering technology with a spring-loaded design. This helps create a tighter, more controlled steering feel compared to worn or weaker factory-style steering components.
Fully Indexable Drop Forged Pitman Arm
The fully indexable 3-inch drop forged pitman arm comes with 32 splines. This gives builders more flexibility when setting up steering position on compatible steering box applications.
Tapered Insert for Steering Orientation
The included slit tapered insert allows steering orientation to be changed from bottom-up to bottom-down if needed. This is helpful on custom builds where lift height, clearance, and steering angles may vary.
What Comes in the Kit?

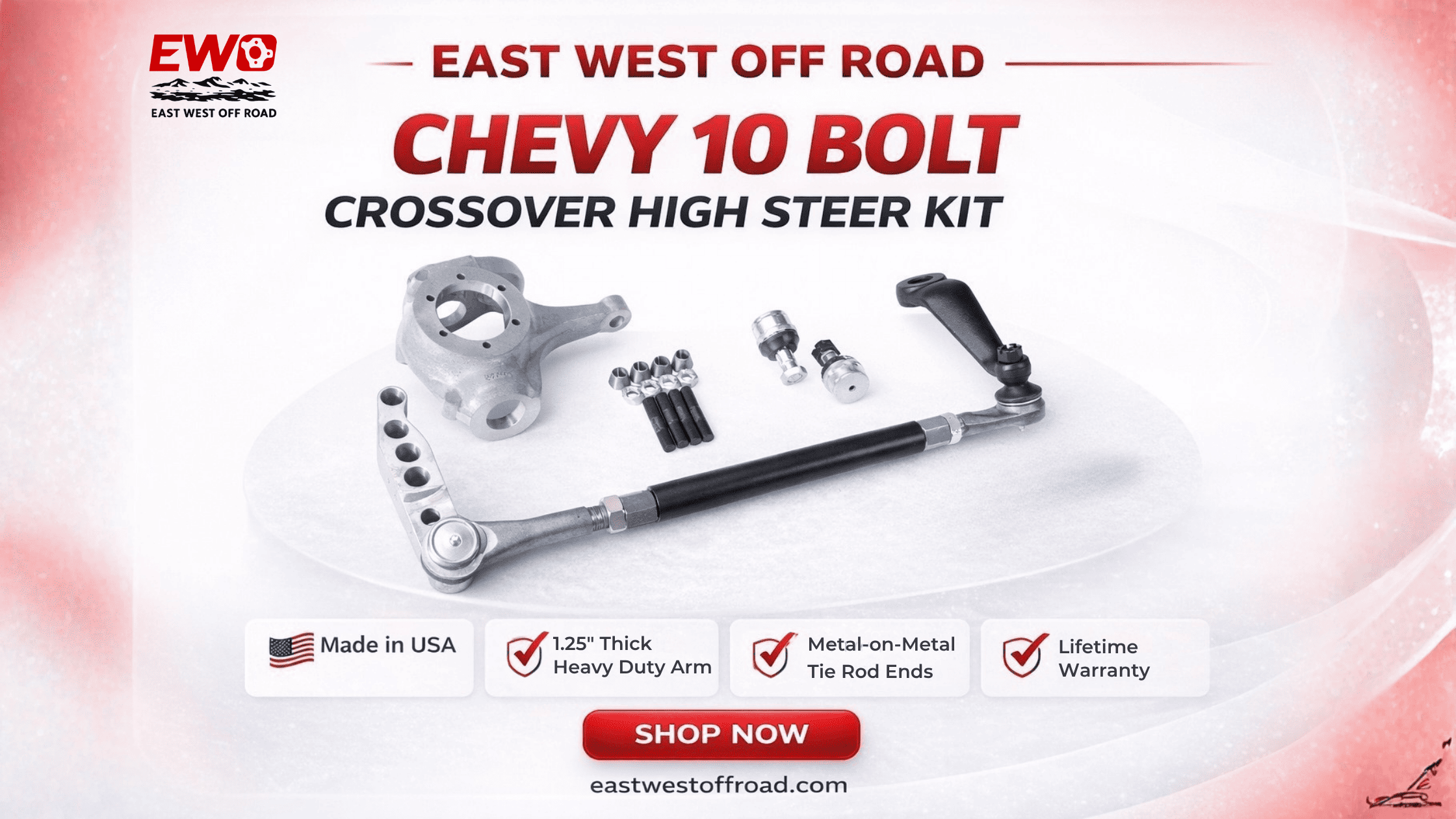

The EWO Chevy 10 Bolt Complete Crossover High Steer Kit includes:
- 1 Dana 44 / Chevy 10 Bolt EWO Knuckle
- 1 Slit Tapered Insert
- 1 Passenger Side 1.25-inch Thick High Steer Arm
- 1 43-inch x 1.50-inch x .250-inch DOM Drag Link Tubing
- 1 ES2026R Drag Link End
- 1 ES2027L Drag Link End
- 4 High Strength Dana 9/16-inch Studs
- 4 Conical Washers
- 4 Lock Nuts
- 1 Metal-on-Metal Upper Ball Joint
- 1 Metal-on-Metal Lower Ball Joint
- 1 Left Tube Adapter / Weld Bung
- 1 Right Tube Adapter / Weld Bung
- 1 Left Jam Nut
- 1 Right Jam Nut
- 1 Fully Indexable 3-inch Drop Forged Pitman Arm, 32 Splines
This complete package helps builders avoid mixing random steering parts that may not work well together.
Vehicle and Axle Compatibility
This kit is compatible with Chevy Dana 44 front axles and Chevy 10 Bolt / GM Corporate 10 Bolt front axles. It may also work with Jeep, Dodge, and Toyota Dana 44 axle swap applications depending on the exact build.
Popular applications may include:
- Chevy K10
- Chevy K20
- Chevy K5 Blazer
- Chevy Suburban 1500 and 2500
- GMC Jimmy
- GMC K10 and K20
- GMC Suburban models
- Custom Dana 44 axle swap builds
Model years may range from 1969–1991 depending on the application. Always confirm your exact axle type, steering box setup, pitman arm spline count, and installation requirements before ordering.
Who Should Consider This Steering Upgrade?
This kit is made for builders who need stronger steering and better geometry for compatible Dana 44 and Chevy 10 Bolt front axle setups.
It is a strong fit for:
- Dana 44 axle swap projects
- Chevy 10 Bolt front axle upgrades
- Lifted Chevy K10 builds
- Chevy K20 trail trucks
- K5 Blazer off-road projects
- GMC Jimmy builds
- Chevy Suburban 4x4 projects
- Rock crawling rigs
- Mud trucks
- Overlanding builds
- Custom Jeep, Chevy, Dodge, Toyota, and GMC 4x4 projects
If your current steering has bump steer, poor drag link angle, loose response, or weak control after a lift or axle change, a crossover high steer conversion can help improve the overall front-end setup.
Practical Checks Before Installation
Before starting a Dana 44 to 10 Bolt Steering Swap or related steering upgrade, inspect the full front-end system. Steering performance depends on correct fitment, proper geometry, and strong supporting parts.
Check these areas first:
- Confirm whether your axle is Dana 44 or Chevy 10 Bolt
- Verify steering box and pitman arm spline compatibility
- Review drag link angle after suspension lift changes
- Inspect ball joints, bearings, and steering linkage
- Check tire clearance and wheel backspacing
- Inspect the frame area near the steering box
- Plan for welding on the tube adapters
- Schedule an alignment after installation
Professional installation is recommended if you are not experienced with steering systems, welding, suspension geometry, or custom 4x4 fabrication.
Why Upgrade Beyond Factory Steering?
Factory-style steering parts may work for stock driving, but lifted and trail-driven vehicles need more strength and better geometry. Larger tires add leverage. Suspension travel changes the steering angle. Rough terrain puts repeated stress on steering components.
A crossover high steer kit helps address the full steering system instead of only replacing one worn part. For Dana 44 and Chevy 10 Bolt builds, the EWO kit provides a complete steering upgrade path with heavy-duty components designed for real off-road use.
Conclusion
A Dana 44 to 10 Bolt Steering Swap should be planned around steering geometry, component strength, and proper axle compatibility. When the steering system is set up correctly, a lifted Chevy, GMC, Jeep, or custom 4x4 build can feel more controlled and predictable on rough terrain.
The EWO Chevy 10 Bolt Complete Crossover High Steer Kit gives builders a complete package with a USA-made EWO knuckle, 1.25-inch billet high steer arm, DOM drag link tubing, metal-on-metal steering components, heavy-duty hardware, and a fully indexable forged pitman arm.
For Chevy K10, K20, K5 Blazer, Suburban, GMC Jimmy, Dana 44 swaps, Chevy 10 Bolt builds, and custom off-road projects, this kit is built to support stronger steering and better front-end control.
Buy Now: https://www.eastwestoffroad.com/product/ewo-chevy-10-bolt-complete-crossover-high-steer-kit
8. FAQs
What is a Dana 44 to 10 Bolt Steering Swap?
A Dana 44 to 10 Bolt Steering Swap usually refers to steering upgrades or conversion planning around Dana 44 and Chevy 10 Bolt front axle applications. It is common in lifted Chevy, GMC, and custom 4x4 builds.
Will this kit fit a Dana 44 front axle?
Yes, this EWO kit is designed for Chevy Dana 44 front axles and Chevy 10 Bolt / GM Corporate 10 Bolt front axle applications.
Is this kit compatible with Chevy 10 Bolt axles?
Yes, the kit is compatible with Chevy 10 Bolt / GM Corporate 10 Bolt front axle applications. Always verify your exact axle and steering setup before ordering.
Can this kit help reduce bump steer?
Yes, a properly installed crossover high steer kit can help reduce bump steer by improving drag link angle and steering geometry on lifted solid axle vehicles.
What vehicles can use this kit?
Depending on the setup, this kit may be used with Chevy K10, Chevy K20, Chevy K5 Blazer, Chevy Suburban, GMC Jimmy, GMC K10, GMC K20, GMC Suburban models, and custom Dana 44 axle swap builds.
Is professional installation recommended?
Yes, professional installation is recommended if you are not experienced with steering systems, welding, suspension geometry, or custom fabrication.
