A Complete Dana 44 Crossover Steering System is a smart upgrade for builders working on Chevy 10 Bolt, GM Dana 44, Jeep Dana 44, K5 Blazer, K10, and custom off-road steering setups. When a truck or Jeep is lifted, used on rocks, or built for serious trail work, factory steering geometry can become one of the first areas that needs attention.
Lifted 4x4 builds often deal with changed drag link angles, reduced steering clearance, bump steer, and added stress on steering parts. For trail rigs, rock crawlers, overlanding builds, and mud trucks, steering needs to be predictable, strong, and properly matched to the axle and suspension setup.

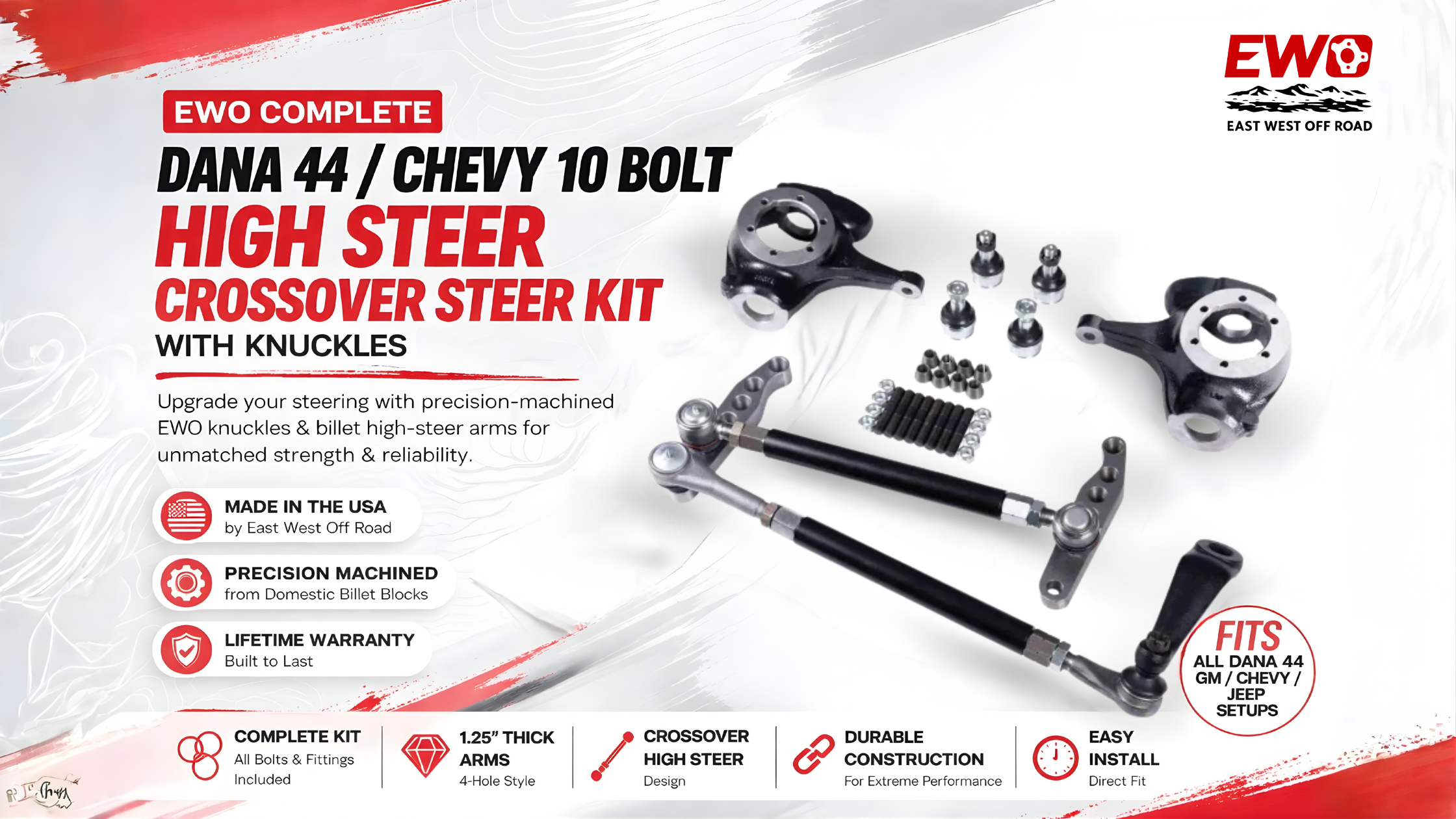

The Dana 44 High Steer Crossover Steering Kit with Knuckles from East West Off Road is built for GM, Chevy, and Jeep Dana 44 applications. It includes flat top driver and passenger knuckles, 1.25 inch billet high steer arms, DOM tubing, tie rod ends, drag link ends, ball joints, a dropped pitman arm, studs, jam nuts, weld bungs, and installation hardware.
Why Factory Steering Can Fall Short on Lifted 4x4s
Factory steering systems are usually designed around the original ride height, tire size, and intended driving conditions. Once a Chevy, GM, or Jeep build is lifted and used off-road, the steering layout may no longer work as cleanly as it did in stock form.
Common steering concerns on modified rigs include:
- Poor steering linkage angle after a lift
- Bump steer during suspension travel
- Low steering parts exposed to rocks and trail obstacles
- Reduced steering response on uneven terrain
- Added load from larger tires and off-road use
For builders trying to fix bump steer on a lifted Chevy K5, complete a Square Body Chevy High Steer Upgrade, or improve a Jeep Dana 44 steering setup, a crossover high steer system can be a practical solution when properly matched to the build.
What a Crossover High Steer Kit Does
A crossover high steer kit changes the way steering force is routed across the front axle. Instead of keeping key steering components low and exposed, high steer arms help move steering linkage higher on the axle.
This can support better steering clearance and improved steering geometry during suspension movement. For off-road builds, that extra clearance can matter when the vehicle is working through rocks, ruts, mud, and uneven trail sections.
The East West Off Road kit is designed as a complete steering upgrade package, making it useful for builders looking for an HD crossover steering kit, Chevy 10 bolt high steer with knuckles, or an EWO complete Dana 44 high steer kit.
Why Dana 44 Flat Top Knuckles Matter
A Dana 44 Flat Top Knuckle Conversion is one of the key steps in many high steer setups. Flat top knuckles provide the mounting surface needed for high steer arms.
This kit includes both Dana 44 driver passenger flat top knuckles, helping builders avoid the hassle of sourcing those major components separately. For a Chevy 10 Bolt, GM Dana 44, or Jeep Dana 44 steering project, having the knuckles included makes the system more complete.
The kit is compatible with Dana 44 / Chevy 10 Bolt axle applications and is designed for GM, Chevy, and Jeep Dana 44 setups. Before ordering, buyers should confirm axle type, vehicle configuration, steering box setup, and installation requirements.
USA-Made Billet Steering Arms and DOM Tubing
The kit includes 1.25 inch billet high steer arms precision-machined from USA domestic billet blocks. These arms are built for 7/8 inch Chevy 3/4 ton tie rods and are listed with a lifetime warranty on the steering arms.
The system also includes heavy-duty DOM steel tubing in two lengths:
- 54 inch DOM tubing
- 43 inch DOM tubing
For builders searching for a 1.50 x .250 DOM tubing steering kit, this package includes major steering tubes and related hardware needed for a crossover high steer layout.
The kit also includes ES2026R ES2027L drag link ends and ES2234L ES2234R tie rod ends, along with weld bungs, jam nuts, and other installation hardware.
What’s Included
This Complete Dana 44 Crossover Steering System includes:
- Driver Side Dana 44 Flat Top Knuckle
- Passenger Side Dana 44 Flat Top Knuckle
- Driver Side 1.25 inch High Steer Arm
- Passenger Side 1.25 inch High Steer Arm
- ES2026R Drag Link End
- ES2027L Drag Link End
- ES2234L Tie Rod End
- ES2234R Tie Rod End
- High-strength Dana 44 studs
- Conical washers
- Lock nuts
- 7/8-18 weld bungs / tube adapters
- Left and right jam nuts
- Upper and lower Dana 44 ball joints
- 3 inch dropped pitman arm
- 54 inch DOM tubing
- 43 inch DOM tubing
- Installation hardware
The included 3 inch dropped pitman arm 32 spline and Dana 44 upper lower ball joints kit help make this a complete package for serious steering upgrade projects.
Ideal For These Builds
This steering kit is suitable for:
- Chevy 10 Bolt axle builds
- GM Dana 44 steering upgrades
- Square Body Chevy high steer projects
- K10 crossover steering conversions
- K5 Blazer steering upgrades
- Jeep Dana 44 high steer upgrades
- Rock crawling builds
- Trail-ready off-road vehicles
- Overlanding rigs
- Mud trucks
- Custom 4x4 fabrication projects
Some builders may search for a Bolt-On High Steer Kit GM 10 Bolt or K10 Crossover Steering Kit No Reaming, but real installation needs can vary by axle, knuckle setup, steering box, and vehicle configuration. Always verify fitment before ordering.
Installation Note
A 2WD steering box is required for all crossover steering kit installations. Before purchasing, confirm your axle compatibility, steering box setup, pitman arm requirements, tube length needs, and any fabrication requirements.
Because this is a steering upgrade for custom and off-road applications, proper installation and setup are important.
Compliance Note
This product may expose users to chemicals including lead, known by the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
Final Recommendation
For builders planning a Dana 44 crossover steering upgrade, Chevy 10 Bolt high steer conversion, Jeep Dana 44 steering upgrade, K5 Blazer steering improvement, or Square Body Chevy high steer project, the East West Off Road kit offers a complete package with flat top knuckles, billet arms, DOM tubing, steering ends, ball joints, pitman arm, and installation hardware.
View the full product details here:
https://www.eastwestoffroad.com/product/ewo-complete-dana-44-chevy-10-bolt-high-steer-crossover-steer-kit-with-knuckles
FAQs
1. What is a Complete Dana 44 Crossover Steering System?
A Complete Dana 44 Crossover Steering System is a steering upgrade package that changes the steering layout using crossover steering components, high steer arms, knuckles, DOM tubing, tie rod ends, drag link ends, and related hardware.
2. Is this kit compatible with Chevy 10 Bolt axles?
Yes. This kit is compatible with Dana 44 / Chevy 10 Bolt axle applications and is designed for GM, Chevy, and Jeep Dana 44 setups. Buyers should confirm their exact axle and steering configuration before ordering.
3. What comes with the East West Off Road kit?
The kit includes driver and passenger flat top knuckles, 1.25 inch billet high steer arms, DOM tubing, tie rod ends, drag link ends, upper and lower ball joints, weld bungs, jam nuts, studs, conical washers, lock nuts, a 3 inch dropped pitman arm, and installation hardware.
4. Do I need a 2WD steering box?
Yes. A 2WD steering box is required for crossover steering kit installations.
5. Is this kit useful for lifted Chevy, K5 Blazer, K10, and Jeep Dana 44 builds?
Yes. This kit is suitable for lifted Chevy trucks, K5 Blazer builds, K10 projects, Jeep Dana 44 high steer upgrades, trail rigs, rock crawlers, overlanding builds, and custom off-road steering setups when fitment is confirmed.
