Building a capable trail rig out of a classic GM truck means dealing with the limitations of old-school factory engineering. As soon as you add a 4-inch or larger suspension lift to clear aggressive mud terrains, the factory push-pull steering geometry becomes a massive liability. To reclaim precise handling, maximize your articulation, and eliminate dangerous on-road wandering, upgrading to a premium Chevy 10 Bolt Crossover Steering Kit is absolutely mandatory.
Conquering Lifted Suspension Flaws
The factory steering design on solid-axle GM vehicles simply wasn't built to accommodate steep drag link angles. When you lift the truck, the drag link is stretched downward, creating severe binding at the tie rod ends and ruining your turning radius.
Fix Bump Steer Lifted Chevy K5 and K10 Rigs
The most terrifying side effect of this extreme angle is bump steer—a condition where vertical suspension movement physically pushes and pulls on your steering arm, causing the truck to violently dart left or right without driver input. If you want to permanently Fix Bump Steer Lifted Chevy K5 and K10 models, you must flatten the drag link's operating angle. A proper Square Body Chevy High Steer Upgrade moves the drag link connection to the passenger side knuckle, keeping it parallel to the axle and restoring smooth, predictable steering control.
Dana 44 vs 10 Bolt Crossover Steering Compatibility
A common point of confusion for builders is navigating the differences between Dana 44 vs 10 Bolt Crossover Steering. Fortunately, the outer knuckle architecture for both the GM Corporate 10 Bolt and the GM Dana 44 front axles are virtually identical. This means that high steer components designed for the Dana 44 will bolt directly onto your 10 Bolt housing, allowing you to utilize massive upgrades without swapping your entire front axle.
The East West Off Road Advantage: Built for Abuse
When upgrading a critical safety component on a heavy full-size rig, you cannot trust cheap, imported cast metals. The East West Off Road steering kit is a testament to rugged American manufacturing, designed specifically for hardcore wheelers who demand indestructible reliability.
USA Made Dana 44 Steering Arms
The true backbone of this hd crossover steering kit is the billet arms. Precision-machined in-house from domestic billet blocks, these 1.25 inch billet high steer arms provide unparalleled rigidity and impact resistance. They feature a heavy-duty 4-hole mounting style to ensure they will never sheer off under the massive torque generated by 37-inch to 40-inch tires, and they are backed by a lifetime warranty.
Dana 44 Flat Top Knuckle Conversion Without the Hassle
Historically, upgrading your steering meant pulling your factory knuckles, taking them to a machine shop, and paying hundreds of dollars to have them milled flat, drilled, and tapped. The EWO complete Dana 44 high steer kit bypasses this entire headache.
Included in the box are brand-new Dana 44 driver passenger flat top knuckles. Designed by EWO with a specialized “Bottom Down” taper to perfectly fit 1-ton rod ends, this functions as a true K10 Crossover Steering Kit No Reaming required. It is the ultimate Bolt-On High Steer Kit GM 10 Bolt solution, getting your truck out of the garage and back on the trail faster.
Inside the Complete Dana 44 Crossover Steering System
This is not a pieced-together junkyard fix; it is a comprehensive, driveway-ready front-end overhaul. Whether you are outfitting a classic Suburban or executing a custom Jeep Dana 44 high steer upgrade, this Complete Dana 44 Crossover Steering System leaves nothing to chance.

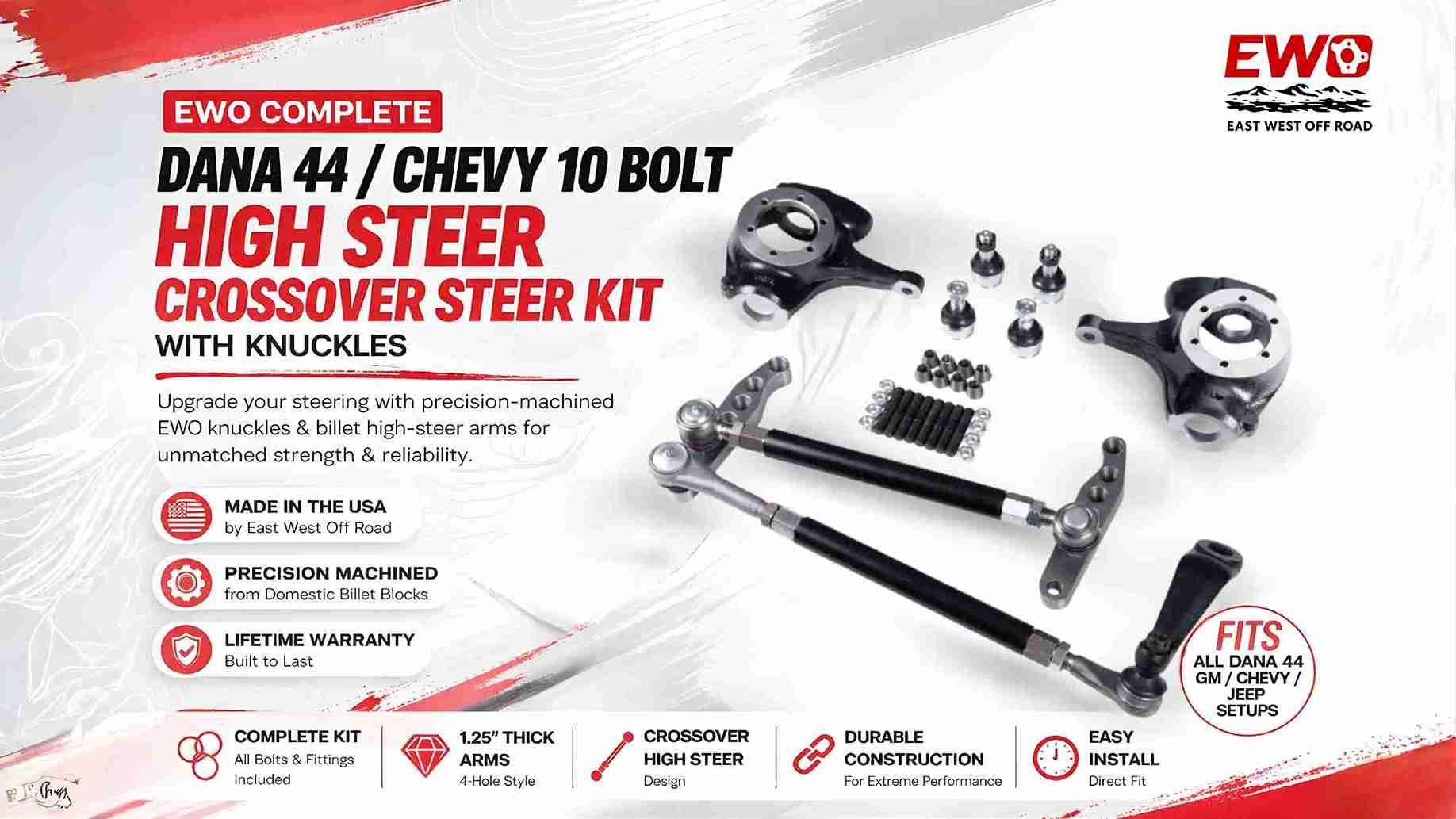

Here is what you get when you order this Chevy 10 bolt high steer with knuckles package:
- Indestructible Tubing: You get a robust 1.50 x .250 DOM tubing steering kit (54” and 43” lengths) that shrugs off rock hits and refuses to bend.
- Premium 1-Ton Articulation: Forget weak factory joints. This kit supplies massive ES2026R ES2027L drag link ends and ES2234L ES2234R tie rod ends, complete with grease fittings, castle nuts, and cotter pins.
- Essential Mounting Hardware: The package includes all required left/right tube adapters (weld bungs), jam nuts, high-strength Dana 9/16”-18 studs, conical washers, and lock nuts.
- Geometry Correction Extras: To ensure your front end pivots smoothly and your geometry is flawless, EWO includes a full Dana 44 upper lower ball joints kit and a fully indexed 3 inch dropped pitman arm 32 spline.
Crucial Setup Note: 2wd Steering Box Crossover Setup
Before you tear down your front axle, you must address your chassis components. The factory 4WD steering box on Square Body GM trucks sweeps in a side-to-side motion, which physically cannot actuate a horizontal crossover drag link. To successfully complete this upgrade, you must source and install a 2wd steering box crossover setup. This simple bolt-on swap provides the required front-to-back sector shaft rotation needed to push and pull your newly relocated passenger-side linkage.
Frequently Asked Questions (FAQs)
Will this kit work on my factory Corporate 10 Bolt front axle?
Yes! The outer steering knuckles on a GM Dana 44 and a GM Corporate 10 Bolt are identical. This kit functions flawlessly on both axles, offering massive strength upgrades for classic Chevy and GMC trucks.
Do I need to take the knuckles to a machine shop?
No. This kit includes brand-new driver and passenger flat top knuckles that are pre-machined and pre-tapered with a "Bottom Down" design specifically for this heavy-duty steering setup. It eliminates the need for custom milling or reaming.
Is welding required for this installation?
Yes. The heavy-duty 1.50" x .250" DOM tubing comes with 7/8 – 18 left and right tube adapters (weld bungs). These inserts must be professionally welded into the ends of the DOM tubes so you can thread in your heavy-duty tie rod and drag link ends.
Why do I need a 2WD steering box?
A crossover steering system routes the drag link horizontally across the axle. A standard 4WD steering box swings left-to-right, while a 2WD steering box swings front-to-back. The front-to-back sector shaft motion is mechanically required to operate the new crossover linkage.
Are the high steer arms guaranteed to last?
Absolutely. The USA Made Dana 44 Steering Arms are CNC-machined from solid domestic billet blocks (1.25 inches thick) and are backed by a lifetime warranty against breakage.
