When building a lifted rig capable of dominating aggressive trails, your front axle geometry and steering components take an immense amount of abuse. Relying on weak, factory cast-iron parts to turn oversized mud tires is a guaranteed recipe for a breakdown on the rocks. If you want to ensure your steering translates to precise, unshakable control, upgrading to 1.25 Inch Billet High Steer Arms is an absolute necessity for your front end.
Let's dive into why ditching brittle factory components is critical and how integrating massive billet arms with an American-made steering system provides the ultimate trail insurance.
Why Your Lifted Rig Needs Heavy-Duty Steering
Lifting a classic solid-axle truck forces the factory drag link into a severe downward angle. Every time your suspension compresses or rebounds, this steep angle causes the linkage to physically push and pull the tires, resulting in dangerous steering feedback.
To safely and permanently eliminate bump steer K5 Blazer owners and classic truck builders must transition to a crossover steering configuration. The most effective way to achieve this is by installing a complete Dana 44 High Steer Kit. Moving the steering linkage high above the leaf springs flattens the operating angle, restoring factory-like handling and creating the perfect foundation for a massive hd crossover steering kit.
Unmatched Durability: The East West Off Road Steering Kit

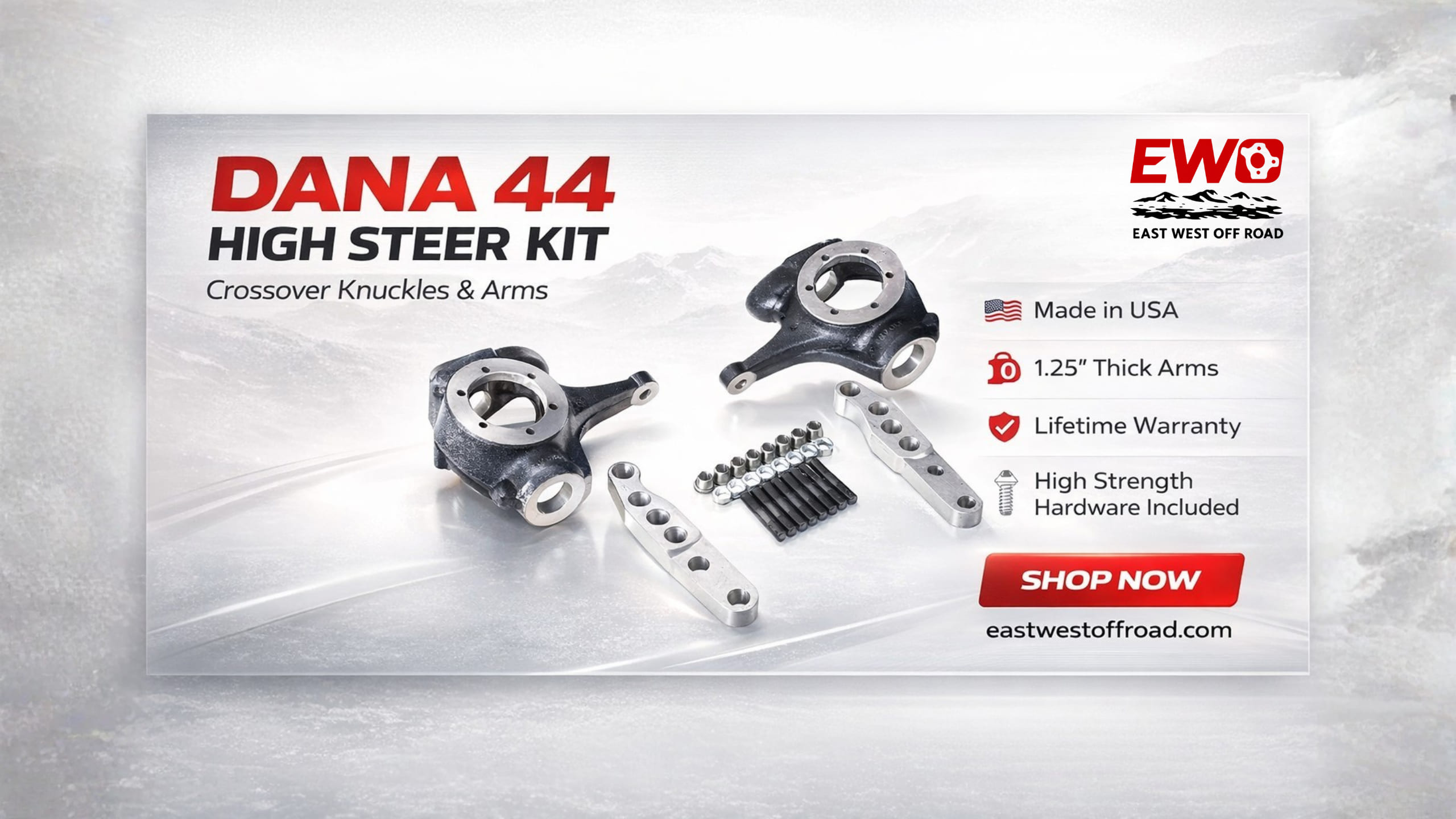

When assembling a reliable GM Chevy Dana 44 high steer set, you cannot compromise on material quality. The complete East West Off Road steering kit removes the guesswork by providing perfectly matched, heavily over-engineered components.
The Power of 4 Hole Billet High Steer Arms
The star of this massive Chevy steering knuckle upgrade is the arm itself. Machined in-house from solid domestic billet blocks, these 1.25 Inch Billet High Steer Arms are practically indestructible and boast a lifetime warranty.
Engineered strictly as 4 hole billet high steer arms, they provide significantly superior clamping force on the knuckle compared to older 3-hole designs. Furthermore, they are precision-tapered to flawlessly accept heavy-duty 7/8 inch Chevy 3/4 ton tie rod arms, serving as the perfect centerpiece for your 1 Ton Steering Upgrade Dana 44 build.
Premium Flat Top Knuckles
Even the thickest steering arm needs a rock-solid foundation. This premium USA Made Dana 44 Steering Kit includes a complete Dana 44 Flat Top Knuckles Pair. You receive brand-new, perfectly matched driver and passenger side flat top knuckles right out of the box.
Manufactured directly in the USA, these EWO Dana 44 crossover knuckles serve as an incredibly strong Reid Racing Knuckles Alternative. They feature a specialized Dana 44 bottom down taper knuckle design, maximizing clearance to ensure your tie rods can articulate flawlessly without binding against the differential or leaf springs.
Bulletproof Hardware and Installation
Securing thick billet arms to your new flat top knuckles requires absolute holding power. This Chevy Dana 44 Crossover Steering Kit abandons standard bolts for eight Dana 44 high strength 9/16 studs (9/16-18 thread). When locked down with the included conical washers and lock nuts, this stud system creates an immovable connection that easily handles the shearing forces of locked front differentials.
Streamlined Dana 44 Crossover Steering Installation
Executing a proper Dana 44 Crossover Steering Installation transforms your rig into a precision machine. Always clean the knuckle mating surfaces down to bare metal before mounting your billet arms. Torque the high-strength studs in a star pattern so the conical washers seat perfectly flush into the arms, providing the necessary interference fit. Finish the job with a professional toe-in alignment, and your truck is ready for the dirt.
Frequently Asked Questions (FAQs)
Are 1.25 inch billet high steer arms better than cast iron?
Yes, absolutely. Billet arms are CNC machined from solid blocks of domestic metal, making them significantly stronger and far more resistant to snapping or cracking under extreme shock loads compared to cast iron. This superior durability is why they are backed by a lifetime warranty.
Does this kit include knuckles for both sides of the front axle?
Yes, the package provides a complete pair, ensuring you receive perfectly matched driver and passenger side flat top knuckles manufactured right here in the USA by EWO.
What tie rod ends will fit these billet arms?
The billet arms feature a precision taper specifically engineered to fit heavy-duty 7/8-inch Chevy 3/4-Ton tie rod ends.
Is all the required mounting hardware included?
Yes. The kit includes 8 high-strength 9/16-18 studs, 8 conical washers, and 8 lock nuts to ensure maximum security and clamping force on the trail.
Will this setup fix the wandering steering on my lifted classic truck?
Yes! Converting to a high steer and crossover configuration flattens the drag link angle, which is the proven mechanical method to permanently eliminate bump steer, wandering, and steering bind.
