If you are building a dedicated trail rig or a daily-driven classic truck on 37-inch tires, you know that steering geometry is everything. For owners of Dana 44 front axles—common in classic Chevy, Jeep, and Dodge platforms—the factory steering is the first point of failure. Upgrading to a Dana 44 high steer kit with knuckles is the most effective way to eliminate bump steer, protect your steering linkage from rock damage, and restore factory-like handling to a lifted vehicle.
By moving your tie rod and drag link from the "inverted-Y" position below the axle housing to the top of the steering knuckles, you flatten the operating angles of your linkages. This prevents the "mechanical bind" that occurs when suspension travel pushes the wheels into an unwanted turn.
Why Include New Knuckles in Your High Steer Kit?
Many enthusiasts try to save money by machining their stock passenger-side knuckle. However, factory Dana 44 knuckles are often cast with a "blind" top, meaning they lack the flat surface and the pre-drilled holes necessary to bolt on a high-steer arm.
A comprehensive Dana 44 High Steer Kit with Knuckle solves this by providing:
- Ready-to-Bolt Geometry: Pre-machined, flat-top knuckles eliminate the need for expensive machine shop turnaround times.
- Structural Reliability: Aftermarket knuckles are designed with thicker material around the stud bosses to handle the increased leverage of large-diameter tires.
- Precision Alignment: Using a purpose-built knuckle ensures the steering arm bolt pattern is perfectly square, preventing the studs from shearing under extreme torque.

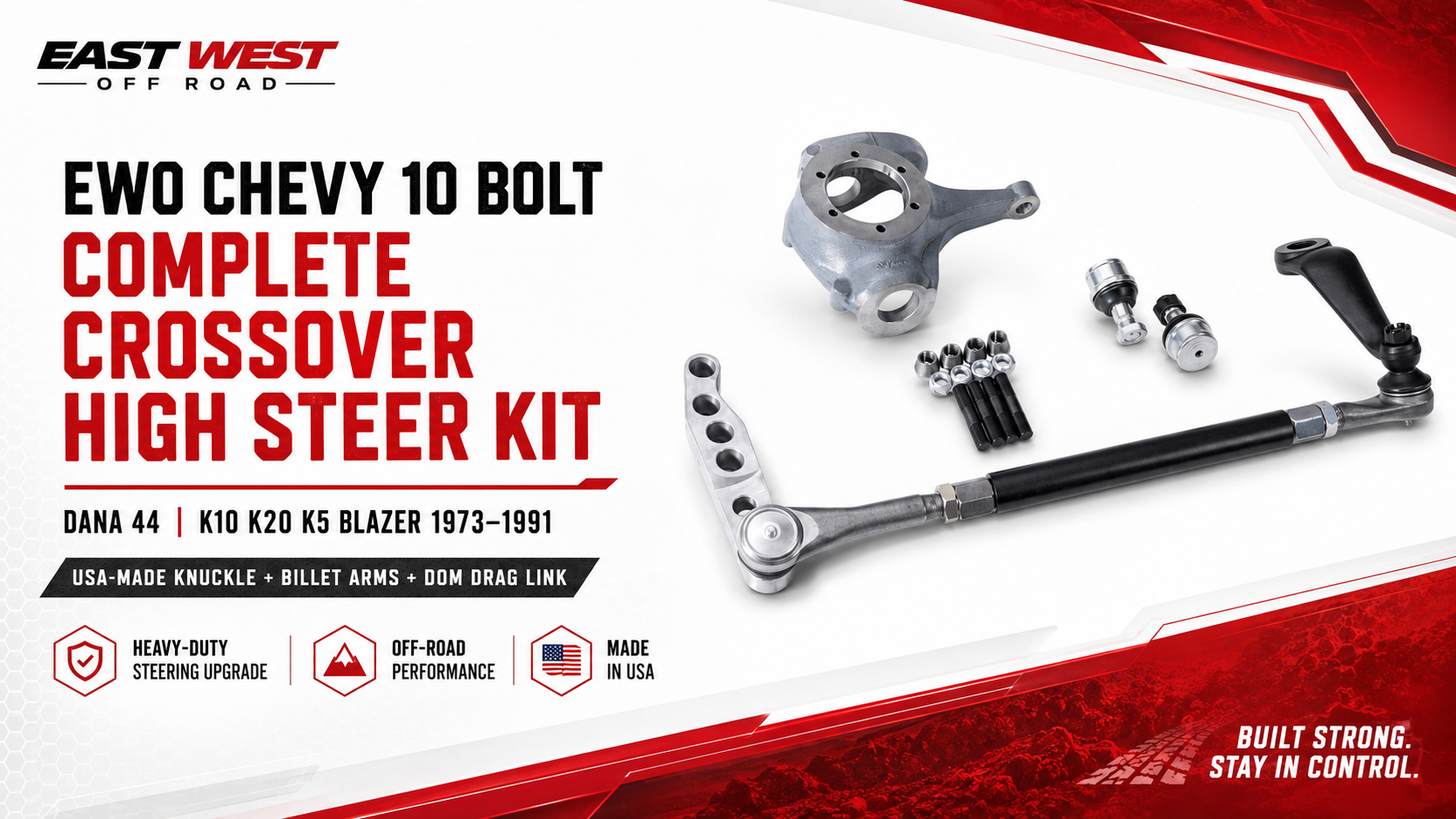

Anatomy of a Professional-Grade High Steer System
When shopping for a Chevy 10 bolt crossover steering kit—which shares the same Dana 44 architecture—don't settle for "bare metal" kits. A true high-steer conversion should include these critical components:
1. Billet Steel High Steer Arms
These arms act as the bridge between your knuckles and your steering linkage. We recommend 1.25 inch billet steel arms, which provide significantly more rigidity than cast iron versions. They are engineered to clear the factory leaf spring packs while offering the correct Ackermann angle for a tight turning radius.
2. Heavy-Duty DOM Drag Link
Your steering linkage takes the brunt of trail abuse. A high-quality DOM tubing drag link kit offers superior wall thickness to prevent bending when striking an obstacle. When paired with metal-to-metal tie rod ends (like the ES2026R/ES2027L), your steering remains tight, vibration-free, and serviceable for years.
3. High-Strength Stud Kits
The connection between the arm and the knuckle is a high-stress point. Always use 9/16” chromoly studs with conical washers. These components act as a wedge, ensuring the high-steer arm stays locked in position despite the constant back-and-forth force of off-road steering.
Installation Checklist for Dana 44 Upgrades
Before diving into your Dana 44 to 10 Bolt Steering Swap, ensure you have the necessary supporting modifications:
- 2WD Steering Box: The factory 4WD box has a downward-facing pitman arm that creates poor geometry for high steer. Swapping to a 2WD box provides a forward-facing arm that aligns perfectly with the new linkage height.
- Drop Pitman Arm: You will likely need a 3-inch or 4-inch drop pitman arm to finalize the drag link angle.
- Fresh Ball Joints: Since the knuckles are coming off, take the time to install a fresh Dana 44 upper lower ball joint kit. A worn ball joint can cause "death wobble," even with a brand-new high steer setup.
Frequently Asked Questions (FAQs)
Does this kit fit both Jeep and Chevy Dana 44 axles?
Most Dana 44 knuckles are interchangeable across domestic brands, but always verify your specific kingpin or ball-joint orientation. This kit is optimized for GM/Chevy 1973–1991 solid-axle applications.
Can I run a sway bar with high steer?
Yes, but you may need to relocate the sway bar links or upgrade to an aftermarket "Anti-Rock" style sway bar to clear the elevated tie rod and drag link.
Is high steer street legal?
Yes. Crossover high steer systems are widely considered an improvement over stock safety standards because they provide more predictable handling and reduced mechanical stress on the steering gear.
