When building a bulletproof off-road rig or beefing up a heavy-duty tow vehicle, dropping drum brakes for a rear disc brake conversion is one of the best upgrades you can make. But if you want to keep your truck street-legal and safe on steep inclines, you need a dependable mechanical emergency brake caliper. That is where Cadillac El Dorado brake calipers come in. Famously sourced from late-1970s luxury liners, these heavy-duty units are the gold standard for custom builders because they feature a clever, integrated parking brake caliper design.
For decades, off-roaders have relied on the 1976-1978 Cadillac Eldorado rear calipers to provide serious clamping force while solving the emergency brake dilemma. Let's break down exactly why these legendary hydro-mechanical rear caliper units remain the ultimate choice for custom axle swaps and how to set them up right.
Why the GM Rear Disc Brake Caliper Rules the Off-Road World
If you are running massive tires and tackling technical trails, stock drums simply won't cut it. Mud, water, and debris get trapped inside the drum assembly, causing severe brake fade and rapid wear. Upgrading to an off-road brake upgrade clears out debris instantly, offers predictable stopping power, and simplifies trailside maintenance.
The classic GM rear disc brake caliper—specifically the large piston Eldorado calipers design—is prized because it combines a massive hydraulic piston for service braking with a fully mechanical rear disc parking brake.
The Legend of the JB6 GM Rear Calipers
In the automotive aftermarket, these units are frequently referred to as JB6 GM rear calipers. Known for their rugged cast-iron construction and massive 2 15/16 inch piston, they deliver the high-volume displacement needed to halt heavy rigs. When you purchase high-quality options like the GM Dual-Bleeder JB6 Brake Caliper (Loaded) from East West Off Road brake calipers, you get an off-road ready solution engineered to withstand harsh trail abuse without breaking a sweat.
Axle Applications: Where to Use El Dorado Parking Brake Caliper Setups
Whether you are building a custom crawler or upgrading a classic tow rig, these calipers adapt beautifully to the most common heavy-duty truck axles on the market. They are widely used across multiple platforms:
- GM 14 Bolt Rear Disc Conversion: A classic upgrade for 3/4-ton and 1-ton Chevy/GMC trucks. Using SRW 14 bolt disc brackets, you can easily bolt these calipers onto a Single Rear Wheel axle.
- Dana 60 Rear Disc Conversion: Perfect for custom Jeep builds, old-school Fords, or Dodge trucks looking for a massive street legal rear disc conversion.
- Sterling 10.25 Disc Brakes & 14 Bolt Disc Brake Swap: Essential for Ford and Chevy heavy-duty builds needing reliable mechanical holding power.
- Chevy K20 Rear Disc Upgrade: Upgrading older 73-86 GM K20 brake calipers or 87-91 GM V20 brake calipers to a rear disc setup ensures modern stopping power on classic square-body trucks.
No matter if you have a standard truck layout or a specialized DRW rear disc conversion or a Cab and Chassis disc brake kit, the versatile El Dorado parking brake caliper offers the perfect balance of stopping performance and parking safety.
Technical Specifications of EWO Cadillac El Dorado Brake Calipers
When you buy cheap auto-parts store remans, you often run into missing brackets, weak springs, and hefty core charges. The EWO Cadillac El Dorado Brake Calipers (frequently cross-referenced with EWO E63013) are built from the ground up specifically for the off-road and custom truck markets.
1.Check Mounting Dimensions:7 inch mounting pin spacing.
EWO calipers feature the industry-standard 7 inch mounting pin spacing, making them a direct drop-in fit for most aftermarket 14-bolt, Dana 60, and K20/V20 disc brake brackets.
2.Verify Fluid Ports and Hardware:7/16-20 banjo bolts with copper washers.
Unlike small-car calipers that use a 10mm x 1.5 banjo bolt, these heavy-duty units rely on a rugged 7/16-20 banjo bolt setup to maximize brake fluid volume and physical strength under pressure.
3.Inspect the Lever System:Heavy duty parking brake lever & return spring.
Every unit arrives as a driver and passenger side park brake caliper set, complete with a heavy duty parking brake lever and high-tension return spring pre-installed.
4.Confirm Brake Pad Fitment:D122 brake pads with locking nub.
These calipers utilize D122 brake pads. It is vital to note the D122 vs D52 pads distinction: D122 pads feature a specialized brake pads with locking nub design on the back plate, which locks directly into the caliper's anti-rotation piston mechanism.
To ensure long-term durability in wet, muddy, or salty trail environments, these premium loaded rear brake calipers feature a beautiful clear zinc coated brake calipers finish. These zinc plated brake calipers resist rust far better than raw cast iron. Plus, they ship with no core charge El Dorado calipers, saving you the hassle of hunting down ancient crusty cores to ship back.
Technical Installation & Troubleshooting Guide
Integrating a hydro-mechanical caliper onto a custom axle can sometimes confuse builders. To get a firm, responsive pedal and a parking brake that actually holds, follow these technical best practices.
Pre-Adjusting Rear Calipers Before Installation
The internal ratchet mechanism of an El Dorado caliper relies on mechanical movement to keep the pad gap tight as the friction material wears. If you simply bolt them on and pump the pedal, you will likely end up with a spongy pedal after disc swap or a parking brake won't hold situation.
Before bleeding, you must manually actuate the parking brake lever back and forth. This triggers the internal ratchet mechanism adjustment, ratcheting the piston out until the pads seat snugly against the rotor face.
Overcoming Caliper Piston Rotating and Spongy Pedals
If your piston is misaligned, the locking nub on the D122 pad won't seat into the piston face, causing the caliper piston rotating issue during actuation. Ensure the piston face grooves align perfectly with the pad's nub.
Additionally, because these huge pistons demand significant fluid volume, you may need a master cylinder upgrade for 4 wheel disc setups to move enough fluid. For perfect pressure distribution, consider adding an adjustable proportioning valve into your rear brake line, and make sure you do a residual pressure valve removal if your old drum master cylinder had a 10-lb residual valve built-in (disc brakes only require a 2-lb valve or none at all).
Mastering the Bleeding Process
Because these are a GM dual-bleeder caliper configuration, bleeding rear disc brakes is straightforward—just ensure the caliper is oriented so the active bleeder screw sits at the absolute highest point of the cylinder casting to avoid trapping stubborn air bubbles. Pair your new calipers with a rugged 26” Steel Braided Front Brake Line Kit – Pair (with Hardware) or matched rear steel braided brake lines to eliminate hose expansion and ensure a rock-solid pedal response on the trail.
Get the Best: EWO Army Brake Parts

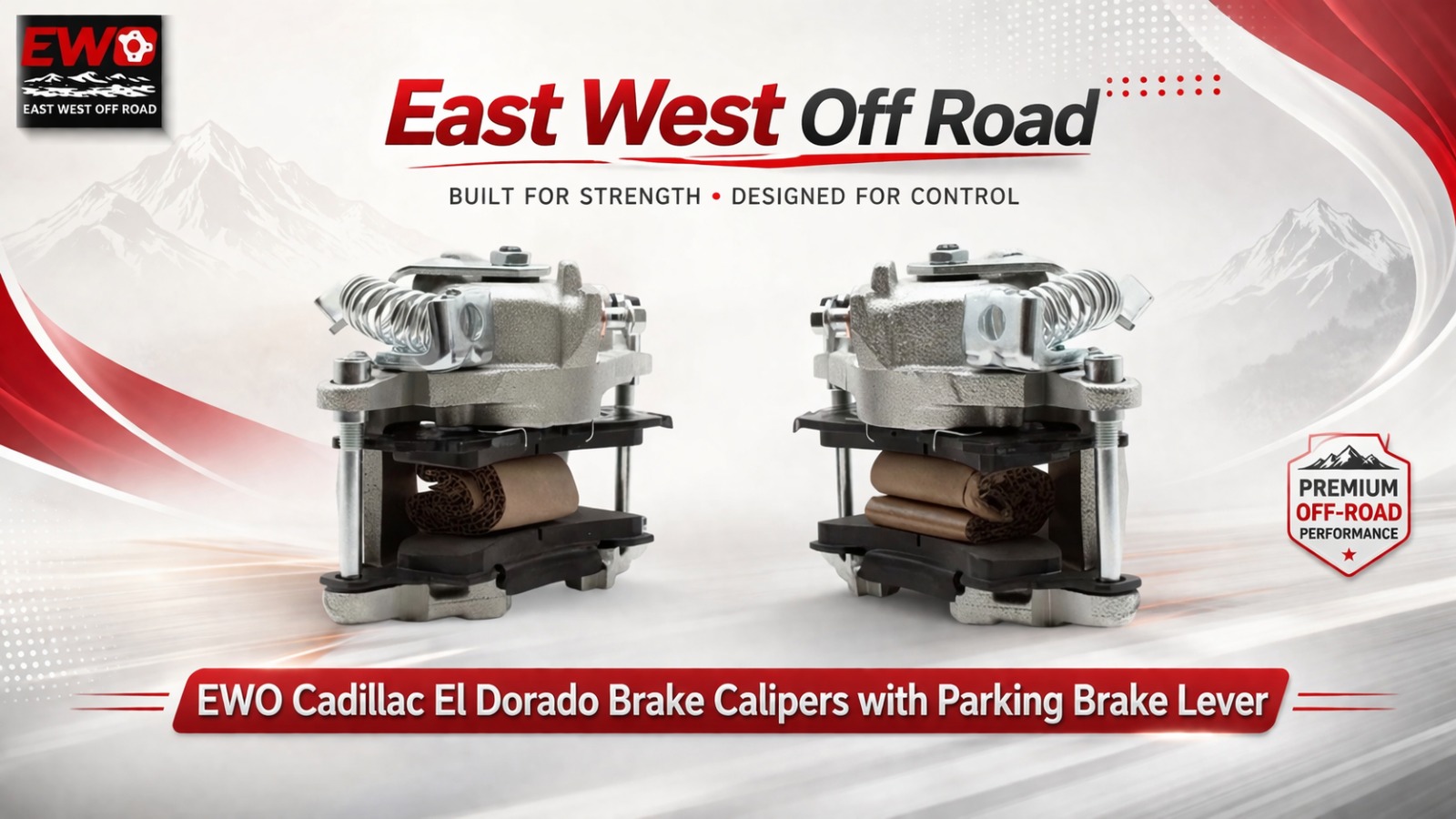

If you are tired of weak emergency brakes and rust-pitted calipers, it's time to step up to military-grade reliability. The Cadillac El Dorado Brake Calipers with Parking Brake Lever from the EWO Army brake parts lineup offer premium engineering, zinc corrosion protection, and zero core charges. Equip your rig with the ultimate stopping power today.
Frequently Asked Questions (FAQs)
What makes Cadillac El Dorado brake calipers unique for off-road swaps?
Unlike standard front or rear calipers, El Dorado calipers feature a built-in mechanical parking brake lever linked to an internal ratchet mechanism. This allows you to convert heavy-duty truck axles (like a 14 Bolt or Dana 60) to high-performance disc brakes while maintaining a fully functioning, cable-operated emergency brake for street legality and trail safety.
What is the difference between D122 vs D52 pads?
While they share a similar overall footprint, D122 brake pads feature an integrated locking nub on the back of the steel backing plate. This nub slots directly into the anti-rotation piston mechanism inside the El Dorado caliper. Standard D52 pads lack this nub and will not allow the emergency brake auto-adjustment mechanism to function properly.
Why won't my El Dorado parking brake hold or adjust?
This is almost always due to improper pre-adjustment or a lack of regular use. The internal ratchet mechanism adjustment only triggers when the mechanical parking brake lever is pulled through its full stroke. If the pads are too far from the rotor during initial setup, you must manually actuate the lever back and forth to pre-adjust the caliper before hooking up your parking brake cables.
