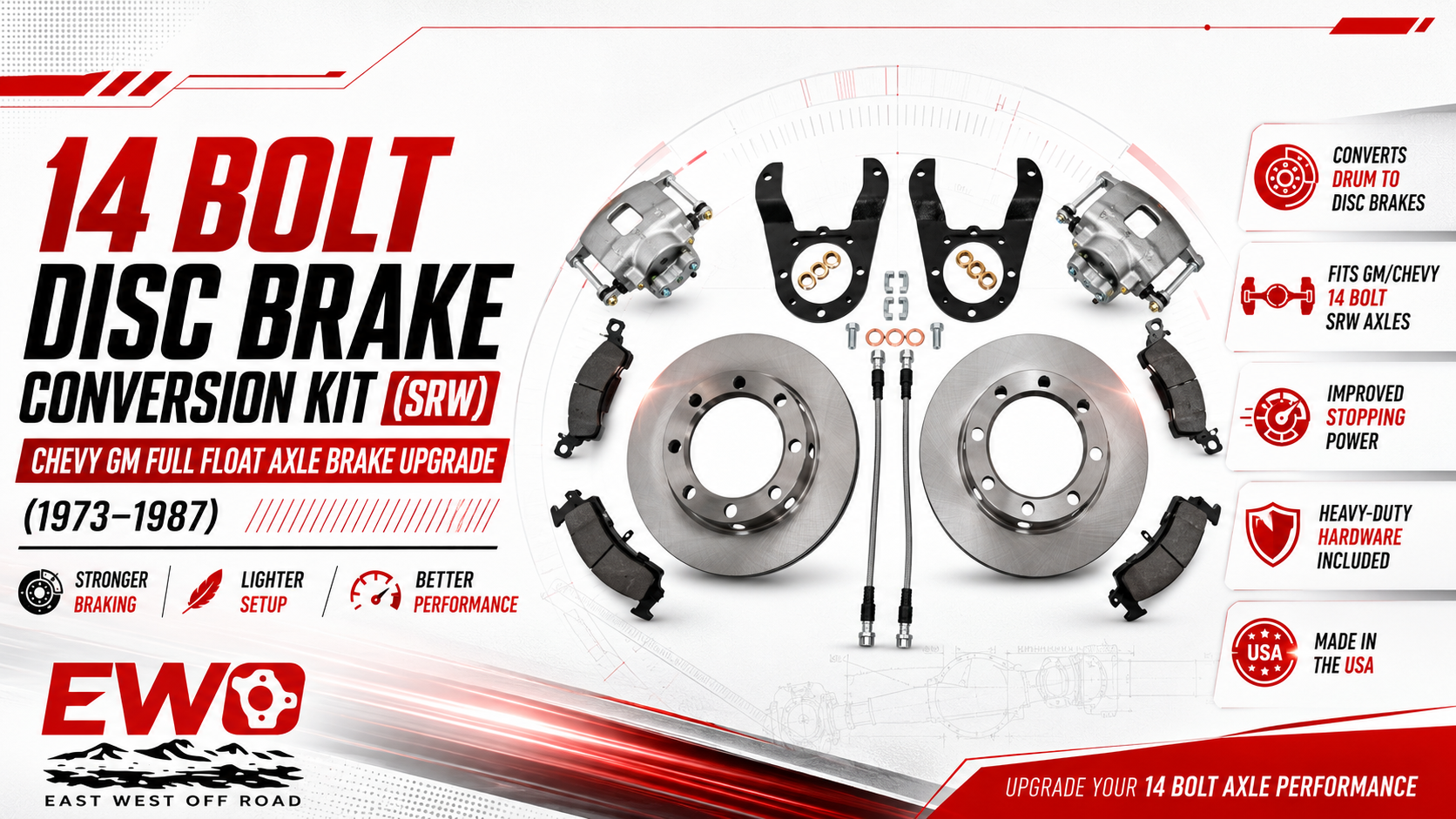

Buy Now: 14 Bolt Disc Brake Conversion Kit (SRW) – Chevy GM Full Float Axle Brake Upgrade (1973–1987)
If you are building or restoring a classic Chevy or GMC truck, a 14 bolt SRW disc brake kit is one of the most practical upgrades for replacing the original rear drum brakes. A properly matched disc conversion can improve brake response, simplify maintenance, and reduce the weight and complexity associated with large rear drums. The East West Off Road kit is designed for compatible Chevy and GM 14-bolt full-float single-rear-wheel applications from 1973–1987, making it a strong option for truck, crawler, and off-road builds.
Why Upgrade a 14 Bolt SRW Axle to Disc Brakes?
The GM 14-bolt full-float axle is popular because of its strength and durability, but many older applications still use factory drum brakes. When you are already rebuilding an axle or preparing a truck for demanding off-road use, converting the rear axle to discs can make sense.
Disc brakes offer several practical advantages over traditional drum systems.
Better Brake Response
A disc brake system provides consistent contact between the pads and rotor. For a modified truck carrying larger tires, additional equipment, or increased trail weight, upgrading the rear braking system can help create a more modern braking setup.
Improved Heat Management
Brake drums can retain heat during repeated braking. Disc brakes generally dissipate heat more effectively, which can be valuable when descending steep grades, towing, or repeatedly slowing a heavy off-road vehicle.
Easier Maintenance
Disc brake components are straightforward to inspect and service. Pads can be replaced without dealing with the internal springs and hardware associated with conventional drum assemblies.
Reduced Drum-Brake Complexity
A rear disc conversion eliminates the bulky drum assembly and replaces it with a rotor, caliper, pads, and mounting hardware. Similar conversion kits on the market emphasize the reduced complexity and maintenance benefits of moving from drums to discs.
What Is a 14 Bolt SRW Disc Brake Kit?
A 14 bolt SRW disc brake kit is designed to convert the rear brakes on a compatible GM/Chevy 14-bolt single-rear-wheel axle from drum brakes to disc brakes.
SRW means Single Rear Wheel. This distinction is important because a dually or different 14-bolt configuration may require a different brake conversion.
The East West Off Road application is intended for Chevy GM full-float 14-bolt axles from 1973–1987.
For buyers comparing different GM axle configurations, verifying axle type before ordering is one of the most important steps.
Chevy 14 Bolt Disc Brake Upgrade for Off-Road Trucks
A Chevy 14 bolt brake upgrade is especially useful on trucks that have moved beyond their original factory configuration.
Large tires, suspension modifications, increased vehicle weight, and off-road use can place additional demands on the braking system. A rear disc conversion is therefore commonly considered alongside other chassis and braking upgrades.
Whether your project is a classic Square Body Chevy, a trail truck, or a custom 4x4, the goal should be a complete braking system that is properly matched from front to rear.
Ideal for Full-Float 14-Bolt Builds
The 14-bolt full-float axle is commonly used in heavy-duty GM truck applications. Before purchasing a brake conversion kit, confirm that your axle matches the required configuration.
Important considerations include:
- Full-float versus semi-float axle
- Single-rear-wheel versus dually configuration
- Model year and axle generation
- Drum and hub configuration
- Wheel and brake clearance
- Brake line and hydraulic requirements
Some competing SRW conversion kits specifically limit fitment to certain 14-bolt generations and configurations, so axle identification should never be skipped.
What Makes a Good 14 Bolt Disc Brake Conversion Kit?
A quality brake conversion should be more than a pair of brackets. The components need to work together as a complete system.
A typical 14 bolt disc brake conversion includes components such as:
Brake Mounting Brackets
The brackets provide the mounting location for the rear calipers and must be designed for the specific axle configuration.
Rotors
The rotors provide the friction surface for the brake pads. Correct rotor dimensions and mounting are critical for proper caliper positioning and wheel clearance.
Rear Calipers
Calipers apply clamping force to the rotor through the brake pads. Depending on the configuration, builders may choose standard calipers or calipers with an integrated parking-brake mechanism.
Brake Pads
The pads should be correctly matched to the selected calipers and rotors.
Hydraulic Hardware
Brake hoses, banjo fittings, washers, and related hardware may be required to connect the new rear calipers to the vehicle's hydraulic system.
Conversion kits from established off-road suppliers commonly package brackets, rotors, calipers, pads, hoses, and mounting hardware together to simplify the installation.
14 Bolt Rear Disc Brakes vs. Factory Drums
Choosing between the original drums and a disc conversion depends on the intended use of the vehicle.
For a mostly original truck that sees limited driving, rebuilding the existing drums may be adequate. For an off-road truck or modified 4x4, however, rear disc brakes can provide advantages in serviceability, heat management, and component accessibility.
The biggest benefit is not simply installing discs; it is building a brake system that is properly sized and balanced for the entire vehicle.
14 Bolt Disc Brake Swap: Fitment Checklist
Before ordering a brake conversion kit, identify your axle carefully.
1. Confirm the Axle Is a 14-Bolt Full Float
Do not assume every GM 14-bolt uses the same brake conversion. Semi-float and full-float axles can require different components.
2. Confirm SRW Configuration
This kit is intended for single-rear-wheel applications. Dually configurations may require different brackets, rotors, and caliper arrangements.
3. Check Model Year
The East West Off Road product is specified for 1973–1987 Chevy GM full-float applications.
4. Check Wheel Clearance
Brake conversions can change the relationship between the caliper, rotor, axle, and wheel. Always verify wheel diameter, backspacing, and caliper clearance before final assembly.
Some competing kits specify minimum wheel sizes and maximum backspacing requirements, showing why wheel clearance should be confirmed rather than assumed.
Chevy Truck Brake Conversion for Street and Off-Road Builds
A rear disc brake conversion can be part of a broader Chevy truck brake conversion project.
For an older GM truck, builders may combine the rear disc setup with:
- Upgraded front brakes
- New brake hoses
- Fresh hard lines
- A properly selected master cylinder
- Adjustable proportioning valve
- Parking brake solution
- High-quality brake fluid
- Correctly sized tires and wheels
The final braking balance matters. Installing larger rear brakes without evaluating the rest of the hydraulic system can affect brake bias and pedal behavior.
How to Approach a 14 Bolt Disc Brake Conversion
Installation should begin with a clean and inspected axle.
Prepare the Axle
Remove the original drum components and thoroughly inspect the axle housing, wheel bearings, seals, mounting surfaces, and hardware.
Install the Conversion Brackets
The brackets must sit correctly and securely on the axle. Follow the manufacturer's installation instructions and torque specifications.
Install Rotors and Calipers
After confirming rotor seating and caliper positioning, install the brake pads and calipers. Make sure there is no interference between the brake components and axle or wheel assembly.
Connect the Brake Lines
Route the brake hoses so they have adequate clearance throughout suspension travel. Avoid sharp bends, excessive tension, and contact with moving suspension components.
Bleed and Inspect the System
Once the hydraulic system is connected, bleed the brakes thoroughly. A spongy pedal should not be considered normal after installation. Inspect every fitting for leaks before driving.
Why Choose an SRW Conversion for a Chevy GM 14 Bolt?
The main attraction of an SRW 14 bolt disc brake conversion is combining the strength of the GM full-float axle with a more accessible rear braking design.
For a classic Chevy or GMC build, this can be a particularly useful upgrade when the truck is receiving larger tires, suspension changes, or an off-road-focused drivetrain.
The conversion also gives builders a cleaner foundation for future brake-system upgrades.
East West Off Road 14 Bolt Disc Brake Conversion Kit
For a compatible 1973–1987 Chevy GM full-float SRW axle, the [14 bolt SRW disc brake kit] is designed as a direct-focused solution for converting the rear axle from drum brakes to discs.
The product is specifically positioned for Chevy GM full-float axle brake upgrades and can be used as part of a larger truck or off-road brake project.
If you are already upgrading other braking components, choosing a complete and compatible conversion rather than mixing random brackets, rotors, and calipers can make the build easier to service later.
Is a 14 Bolt Disc Brake Swap Worth It?
For many modified Chevy and GMC trucks, yes. The value comes from more than simply replacing drums with rotors.
A well-planned conversion can provide:
- Easier brake service
- Modern disc-brake architecture
- Better heat management
- Reduced drum-related complexity
- A cleaner rear axle setup
- Better compatibility with an off-road-focused build
However, fitment remains the deciding factor. A conversion kit should be selected based on the exact axle configuration rather than simply the phrase “14 bolt.”
Frequently Asked Questions (FAQs)
What is a 14 bolt SRW disc brake kit?
A 14 bolt SRW disc brake kit converts the rear drum brakes on a compatible GM/Chevy 14-bolt single-rear-wheel axle to disc brakes. SRW means single rear wheel.
What years does the East West Off Road kit fit?
The East West Off Road product is specified for Chevy GM full-float 14-bolt axles from 1973–1987.
Can I use this kit on a dually 14-bolt axle?
You should not assume SRW and dually applications use the same components. This product is intended for SRW applications, so a dually axle requires separate fitment verification.
Is this conversion for a full-float 14-bolt?
Yes. The product is designed for Chevy GM full-float 14-bolt axle applications.
What are the benefits of 14 bolt rear disc brakes?
Common benefits include easier maintenance, reduced drum-brake complexity, improved heat management, and a modern rear braking configuration.
Do I need to change the master cylinder?
Not necessarily in every build, but the complete hydraulic system should be evaluated after a rear disc conversion. Master-cylinder compatibility, brake bias, and pedal feel should all be checked.
Do I need a proportioning valve?
Brake bias depends on the entire vehicle configuration. An adjustable proportioning valve can be useful when dialing in front-to-rear braking, but the correct setup should be determined for the specific vehicle.
Can I use the kit for an off-road truck?
A compatible 14-bolt SRW disc conversion can be a strong option for an off-road truck. However, confirm axle, wheel, brake-line, and caliper clearance before installation.
Are 14 bolt disc brakes easier to maintain than drums?
Generally, disc brake components are easier to inspect and service because the pads and rotor are externally accessible compared with the internal hardware of drum brakes.
Should I verify my axle before ordering?
Absolutely. Confirm the axle is the correct full-float SRW configuration and falls within the product's specified application range. Fitment should always be verified before purchasing or installing brake components.
Final Thoughts
A 14 bolt SRW disc brake kit is a practical way to modernize the rear braking system of a compatible Chevy or GMC full-float axle. For classic trucks, crawlers, and modified 4x4s, converting from drums to discs can simplify maintenance while providing a cleaner and more serviceable brake setup.
The key is choosing a conversion designed for the exact axle configuration. For 1973–1987 Chevy GM full-float SRW applications, the East West Off Road conversion provides a purpose-built option for a complete rear disc brake upgrade.
