For decades, the GM corporate 10.5-inch 14-bolt full-floating rear axle has been the go-to choice for heavy-duty towing, extreme off-roading, and classic truck restorations. It is nearly indestructible, but its 1970s-era drum brakes are a major weak link. Upgrading to a modern 14 bolt disc brake conversion kit is the most cost-effective and reliable way to give your rig the stopping power it deserves.
The Core Problem with 14-Bolt Factory Drums
Stock drum brakes are massive, complicated, and incredibly heavy. When you are out on the trail, those giant brake drums act like bowls, scooping up mud, silt, and rocks. This grit grinds away at your brake shoes, ruins your stopping power, and requires constant adjustment. On the highway, towing a heavy load causes these drums to heat up rapidly, leading to terrifying brake fade.
Upgrading to a dedicated gm 14 bolt disc conversion replaces all that outdated hardware with a clean, self-cleaning, open-air rotor and caliper setup.
Why Choose a 14 Bolt Rear Disc Brakes Upgrade?
Swapping to a high-performance 14 bolt rear disc brakes system offers massive real-world performance benefits for your daily driver, work horse, or trail buggy:
- Consistent, Predictable Stopping: Disc brakes offer exceptional thermal management, meaning no more fading when descending steep mountain grades.
- Simple Pad Changes: Ditch the springs, clips, and star wheels. Changing pads on a disc brake system requires removing only two basic slide pins.
- Significant Weight Savings: Dropping those massive cast-iron drums sheds substantial unsprung weight, allowing your rear suspension to react much faster to rough terrain.
For single-rear-wheel applications, installing a complete 14 bolt SRW disc brake kit ensures you have all the perfectly matched brackets and hardware to modernize your rear end without custom engineering.
Selecting the Right Upgrade Kit
Not all corporate 14-bolt rear ends are identical, making component matching highly critical.
SRW vs. DRW Hub Configurations
Before ordering your parts, verify your axle type. A standard SRW brake conversion chevy setup relies on a specific wheel hub offset that is entirely different from a dual-rear-wheel (DRW) dually or a narrow cab-and-chassis axle. Using components designed for the wrong hub layout will cause severe wheel backspacing and tracking alignment issues.
Complete Engineered Packages

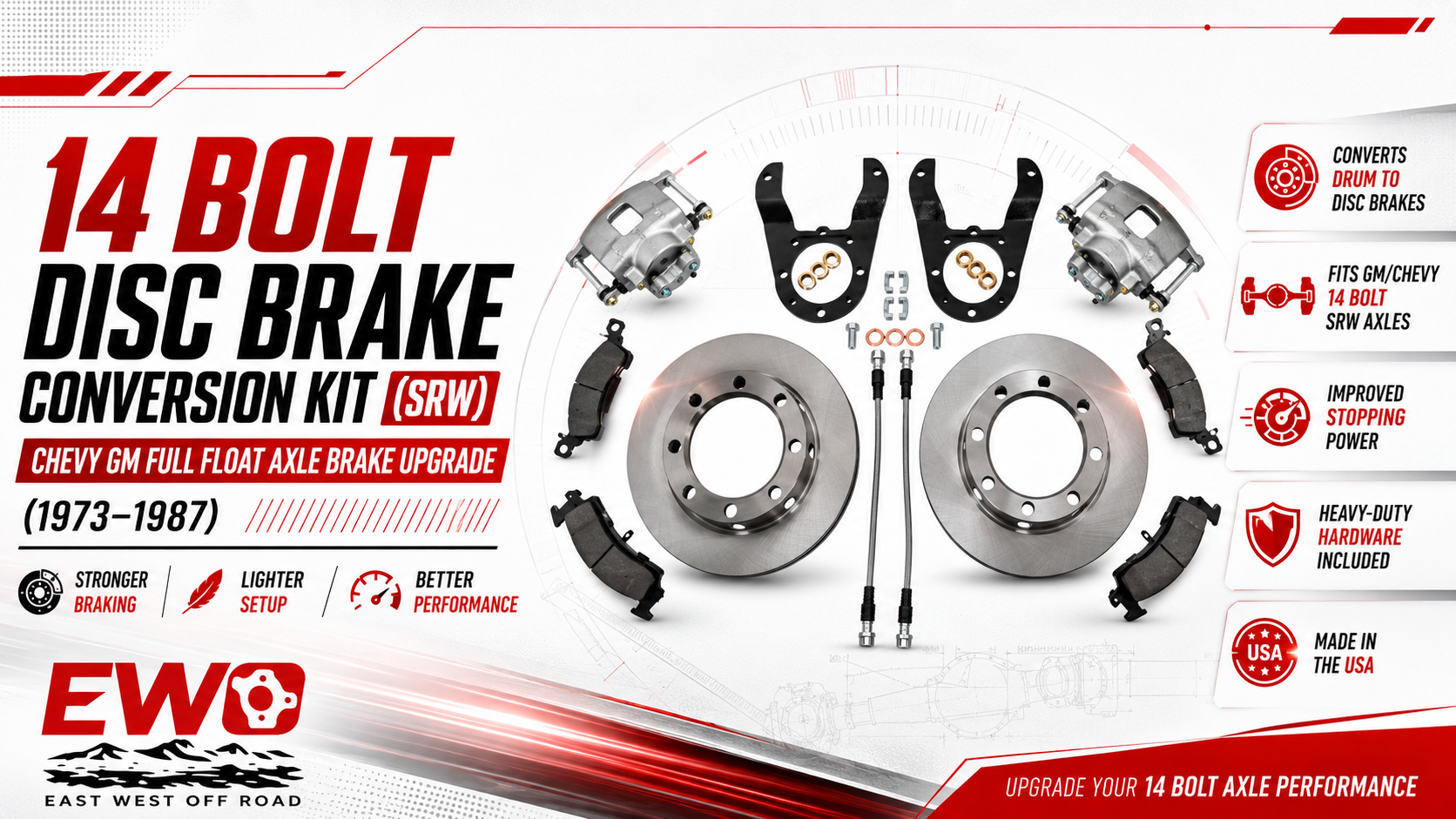

Piecing together a custom conversion from salvage yard scraps often leads to mismatched parts and poor caliper alignment. Investing in an all-in-one 14 bolt rotor caliper kit ensures that your heavy-duty rotors and calipers align flawlessly with the laser-cut mounting brackets.
Step-by-Step Installation Process
Because a full-float axle allows you to service the wheel hubs without pulling the actual axle shafts completely out of the housing, a 14 bolt disc brake swap is one of the cleanest and most straightforward drivetrain upgrades you can tackle in your home garage.
1.Demolish the Drum Hardware:Approx. 1-2 Hours.
Chock the front wheels, jack up the rear end, and secure it safely on heavy-duty jack stands. Remove the wheels and slide off the giant factory drum. Disconnect the stock rigid steel lines from the wheel cylinders.
2.Pull the Hub and Clean Spindle:Approx. 45 Mins.
Unbolt the axle shaft flange bolts, slide the shaft out slightly to catch any escaping gear oil, and remove the outer spindle lock nuts. Pull the wheel hub forward. Thoroughly scrub the axle flange face with a wire brush to remove rust and grime.
3.Install the Caliper Brackets:Approx. 30 Mins.
Bolt your new heavy-duty, laser-cut caliper brackets directly to the stock 4-bolt backing plate flange on the axle housing. Torque all mounting hardware to exact manufacturer specifications.
4.Mount Hubs, Rotors, and Calipers:Approx. 1 Hour.
Press your new rotors onto the back of your factory wheel hubs using your lug studs. Slide the hub and rotor assembly back onto the spindle, set the correct bearing preload, and reinstall your spindle nuts. Bolt the loaded calipers securely into place.
5.Plumb and Bleed the Hydraulics:Approx. 45 Mins.
Connect the new flexible brake hoses to your hard lines using a proper flare wrench. Fill your master cylinder with fresh fluid and thoroughly bleed the system until all air pockets are completely purged.
Fine-Tuning Your Chevy Truck Brake Conversion
To unlock the absolute maximum stopping power from your brand-new chevy truck brake conversion, you must address your vehicle's overall hydraulic balance.
Because disc brake calipers require a completely different volume and pressure of fluid compared to low-pressure drum wheel cylinders, your stock drum-biased proportioning valve won't cut it. Installing an adjustable proportioning valve allows you to manually dial in the ideal front-to-rear fluid bias. This simple addition prevents rear-wheel lockup during emergency stops, ensuring your custom chevy 14 bolt brake upgrade works safely and efficiently alongside your front brakes.
No matter if you are restoring a classic squarebody tow rig or building an uncompromised rock crawler, installing a premium gm axle disc brake kit gives you the modern safety and reliability needed for any terrain.
Frequently Asked Questions (FAQs)
Will a brake conversion kit 14 bolt system require me to change my wheels?
Most standard conversions utilize heavy-duty calipers that easily clear traditional 15-inch steel wheels with 3.5-inch backspacing. However, some 15-inch aluminum wheels feature thicker inner lips that may require minor clearancing or an upgrade to 16-inch wheels.
Do I need to run a different master cylinder with a gm 14 bolt brake kit?
While some factory master cylinders can move enough fluid, upgrading to a dedicated disc/disc master cylinder provides a much firmer, more responsive pedal feel by matching the volume demands of the new rear calipers.
Is an emergency brake included in these conversion kits?
Standard base kits utilize standard calipers without parking brake mechanisms. If your vehicle requires a mechanical emergency brake for annual safety inspections or off-road parking, you must select an upgraded kit variant featuring calipers with integrated parking brake actuators.
