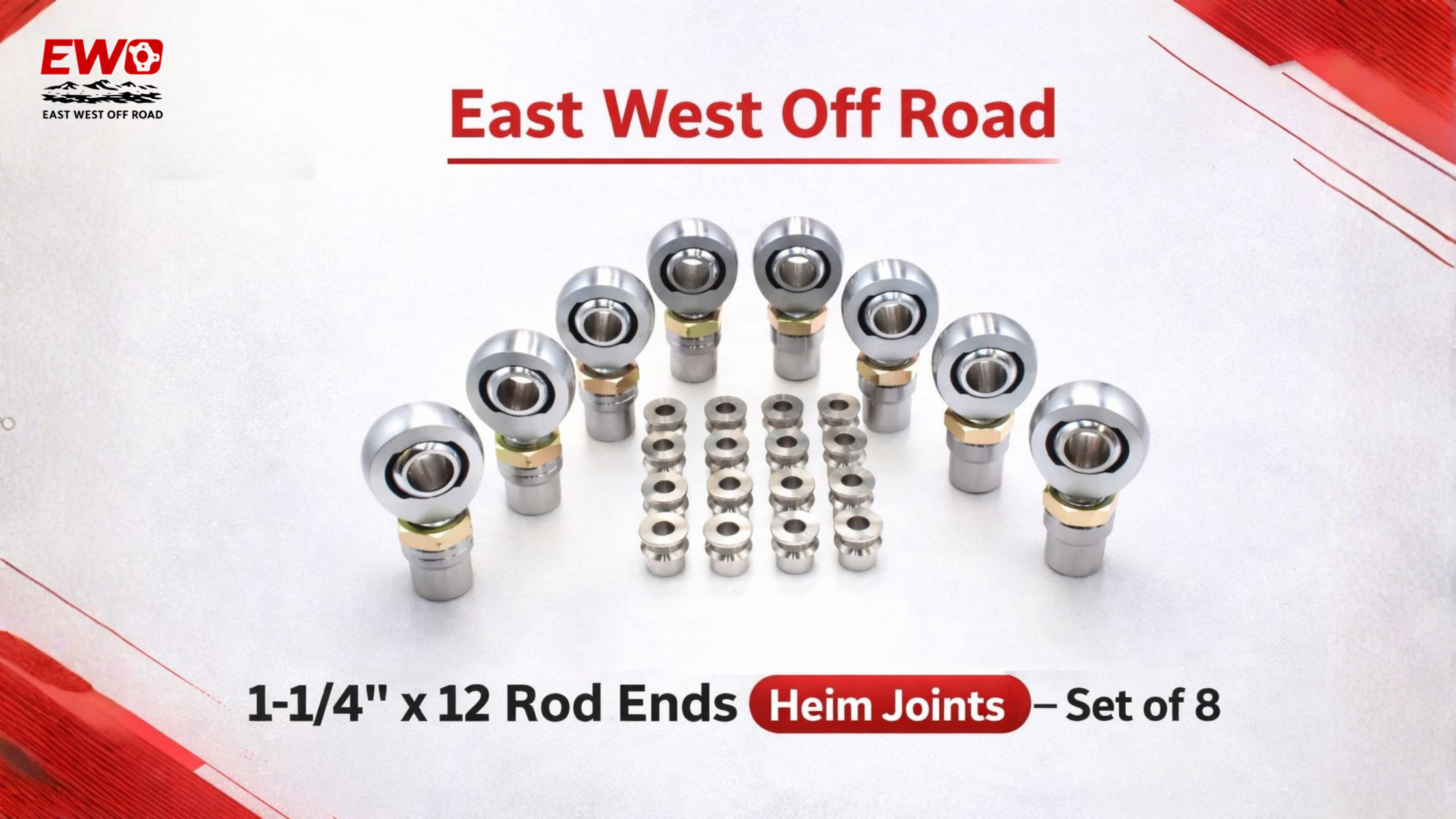

When you are building a hardcore rock crawler or a high-speed desert racer in the USA, your suspension is only as strong as its weakest link. Upgrading to a premium 1-1/4" x 12 Rod Ends (Heim Joints) – Set of 8 from East West Offroad (EWO) is the gold standard for fabricators who refuse to compromise on strength, precision, and articulation. Whether you are piecing together a custom Rock Crawler 4 Link Kit or refreshing a steering system, these high-performance components provide the heavy-duty durability required to withstand the most punishing off-road environments.
The Engineering Behind High-Strength Heim Joints
Not all rod ends are built to handle the violent forces of off-roading. Our 1.25 Rod Ends are specifically engineered for maximum longevity and load capacity under extreme stress.
Premium Material: Heat-Treated Chromoly
The body of the joint is your first line of defense against failure. Utilizing a Heat-Treated Chromoly Joint body, these units are designed to resist stretching and deformation even under massive torque. Unlike standard carbon steel alternatives, the 4130 Chromoly rod ends offer a superior strength-to-weight ratio for your 4x4 Suspension Parts.
Advanced Bearing Technology
- Precision Pivot: Features a 52100 Steel Bearing Heim, providing a smooth, consistent pivot that outlasts cheaper joints.
- Self-Lubricating Liner: Each unit is a Teflon Lined Heim Joint, specifically a Teflon Kevlar lined heim joint.
- Maintenance-Free: This self-lubricating property ensures the bearing remains smooth and prevents dirt from seizing the internal ball.
- Standard Sizing: Each joint features a 1 inch bore 1-1/4 thread heim with a 1-3/8 inch ball width heim joint.
A Complete 1-1/4 Heim Joint Kit for Fabricators
Building a custom suspension system from scratch requires more than just the joints; it requires precision-matched hardware. Our comprehensive 1-1/4 Heim Joint Kit provides the essential components for Custom Off-Road Fabrication
Heavy-Duty Tube Adapters and Bungs
To make your installation seamless, we offer Weld-In Tube Adapter options specifically designed for 2 inch OD DOM tubing with a 1/4 inch wall thickness.
- Material Options: Choose from 1045 steel tube adapters or 1020 Steel Tube Adapter variants to ensure a perfect fit.
- Specific Fitment: We provide a Tube Adapter for 1.5 ID Tubing and Weld-In Bung for 1.5 ID.
- Adjustability: The Hex Head Tube Adapter or 1.5" Hex Tube Bung design allows for easy adjustments with a standard wrench on the trail.
Maximize Performance: Steering and 4-Link Kits
Whether you are designing an Off-Road Steering Kit or a Custom 4 Link Suspension, the versatility of a 1-1/4-12 Rod End Set is unmatched. These Spherical Rod Ends provide the high-misalignment capability needed for deep articulation.
Superior Articulation and Alignment
By using Heim Joints with Misalignment Spacers—specifically our 1 to 9/16 stainless misalignment spacers—you can achieve the clearance necessary for massive suspension travel without binding. Furthermore, our Left and Right Heim Joint Kit allows you to adjust the length of your Adjustable Suspension Links without removing them from the vehicle. Simply turn the link to adjust your wheelbase or pinion angle using the 1-1/4-12 Right Hand Thread and 1.25x1 Right Hand Heim configuration.
Frequently Asked Questions (FAQs)
What tubing is best for a 1-1/4" Heim Joint?
Most builders use 2" OD DOM tubing with a 1/4 inch wall thickness. We provide a DOM Tubing Weld Adapter specifically for this 1.5" ID setup.
What is the load rating for these joints?
These joints boast a massive 76,200 lb Radial Load Heim capacity (with some reaching a 76800 lbs radial load rod end rating), making them suitable for the heaviest Race Car Suspension Parts.
Do I need misalignment spacers?
Yes, for high degrees of articulation. 1.25 Heim Misalignment Spacers reduce the bore size but allow the joint to rotate much further before hitting the bracket.
