A high-quality 1-1/4 Heim Joint Kit is one of the most important upgrades for serious off-road builders looking to improve strength, articulation, and adjustability. Whether you're fabricating a custom 4 link suspension, upgrading an off-road steering kit, or replacing worn-out heavy duty rod ends, choosing premium 1.25 rod ends can dramatically improve performance on the trail. Built for abuse, these chromoly heim joints are designed to handle extreme radial loads while maintaining smooth movement under pressure.
What Makes a 1-1/4 Heim Joint Kit Essential?
A 1-1/4-12 rod end set offers significantly more strength than smaller rod ends, making it ideal for larger 4x4 builds, rock crawlers, race cars, and custom fabrication projects.

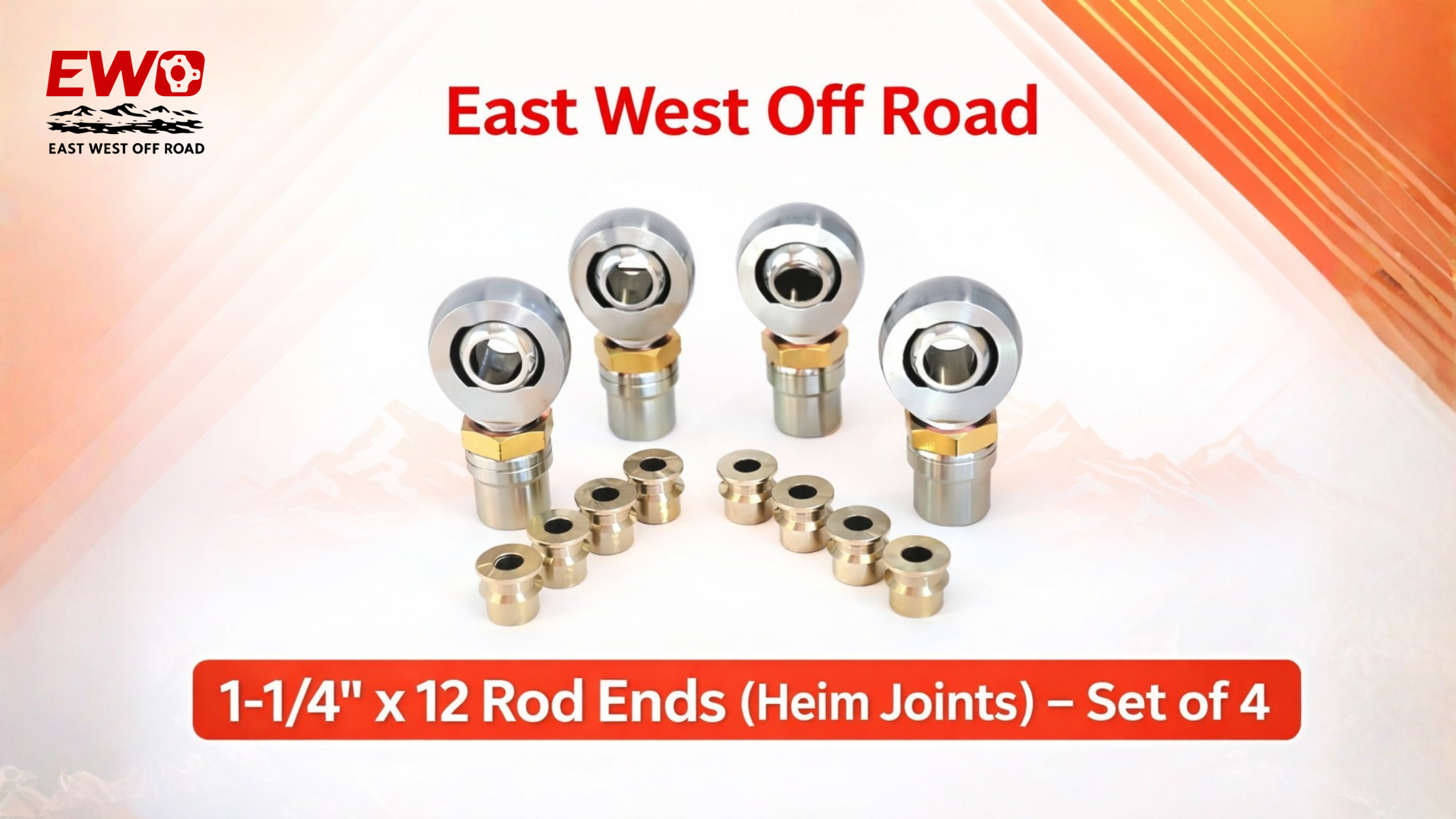

This kit includes:
- Set of 4 1-1/4 x 12 rod ends set of 4
- Precision 4130 chromoly rod ends
- Durable 52100 steel bearing heim
- Self-lubricating Teflon lined heim joint
- Hard chrome finish rod end for long-term durability
- Massive 76,200 lb radial load heim rating
For high-performance applications, a properly built heim joint suspension kit is critical.
The Best Choice for 4 Link Suspension Systems
When designing a 4 Link Kit, suspension geometry and strength matter. Weak rod ends can cause alignment issues or even catastrophic failure under stress.
Using a premium <a href="https://www.eastwestoffroad.com/product/1-14%22-x-12-rod-ends-(heim-joints)-set-of-4">1-1/4 Heim Joint Kit</a> gives builders:
- Better suspension articulation
- Greater adjustability
- Improved durability
- Increased load handling
Perfect for Rock Crawlers
A rock crawler 4 link kit needs durable components that can survive repeated hard impacts. These heat-treated chromoly joints are built specifically for demanding off-road conditions.
Heavy Duty Steering Applications
Beyond suspension, these spherical rod ends are commonly used in custom steering systems.
Popular applications include:
- Heavy duty steering joints
- Steering link joints
- Heavy duty tie rod ends
- High-clearance drag links
- Custom crossover steering systems
Builders often trust these <a href="https://www.eastwestoffroad.com/product/1-14%22-x-12-rod-ends-(heim-joints)-set-of-4">1.25 Rod Ends</a> for steering setups where strength and precision are critical.
Better Steering Response
A strong high-strength heim joint reduces steering slop and improves handling, especially in aggressive off-road situations.
Built with Premium Chromoly Strength
Material quality matters when selecting off-road suspension parts.
4130 Chromoly Construction
These chromoly suspension parts offer:
- Higher tensile strength
- Better impact resistance
- Longer service life
- Greater resistance to bending
For custom off-road fabrication, chromoly remains the preferred material.
Teflon Kevlar Lining
The teflon kevlar lined heim joint minimizes friction while offering self-lubricating benefits, reducing maintenance and increasing longevity.
Hard Chrome Protection
The hard chrome finish rod end protects against rust, corrosion, and wear in mud, sand, and water.
Tube Adapters and Weld-In Bungs
A complete setup requires strong adapters to match the heim joints.
Common pairings include:
- 1020 steel tube adapter
- 1045 steel tube adapters
- DOM tubing weld adapter
- Weld-in tube adapter
- Fabrication tube adapters
- USA made tube adapter
Compatible with:
- Tube adapter for 1.5 ID tubing
- 1.5" inner diameter tube adapter
- Weld-in bung for 1.5 ID
- 1-1/4 tube adapters for 2 inch OD DOM
- .120 wall DOM tube adapter
- .250 wall DOM tube adapter
A strong tube adapter system is essential for safe custom suspension links.
Why Misalignment Spacers Are Important
Using heim joints with misalignment spacers improves articulation and reduces stress on the rod end body.
Benefits include:
- Better flex
- Increased travel
- More mounting options
- Reduced binding
These kits often use:
- 1.25 heim misalignment spacers
- 1 to 9/16 stainless misalignment spacers
- 1" bore heim joint setups
For smoother suspension travel, quality spacers make a huge difference.
Ideal for Race Cars and 4x4 Builds
These race car heim joints are not just for rock crawlers.
They’re commonly used in:
- Drag cars
- Desert trucks
- Ultra4 rigs
- Custom buggies
- Trail Jeeps
- Competition crawlers
Many builders choose these <a href="https://www.eastwestoffroad.com/product/1-14%22-x-12-rod-ends-(heim-joints)-set-of-4">Chromoly Heim Joints</a> because they provide race-proven durability.
Load Ratings That Matter
Strength is everything in suspension and steering.
This kit features:
- 76,800 lbs radial load rod end
- 1 inch bore heim joint
- 1-3/8 inch ball width heim joint
- Heavy-duty body construction
- 1-1/4-12 right hand thread
That level of strength makes these ideal for extreme-duty off-road builds.
Frequently Asked Questions (FAQs)
What size tubing works with this heim joint kit?
These rod ends are commonly paired with 1.5 ID tubing, 2-inch OD DOM tubing, and matching weld-in tube adapters.
Are these good for steering?
Yes, they are excellent for heavy duty steering joints, tie rods, drag links, and crossover steering systems.
Do these heims require maintenance?
Minimal maintenance is required thanks to the teflon lined heim joint design.
What thread size are these rod ends?
They use 1-1/4-12 right hand thread sizing.
Are chromoly heims better than mild steel?
Yes, 4130 chromoly rod ends offer better strength, durability, and impact resistance.
Can these be used for race cars?
Absolutely. These are commonly used as race car suspension parts in high-performance builds.
